| Brand Name: | swift |
| Model Number: | SWT25100H |
| MOQ: | 1 |
| Price: | USD8000-9000/pcs |
| Delivery Time: | 10-12working days |
| Payment Terms: | T/T |

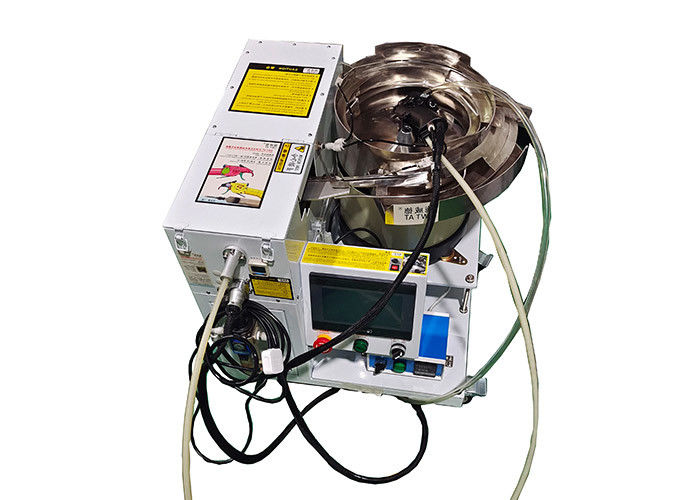

SWT25100H Cable Tie Machine For Binding Nylon Ties 0.7S Speed Max dia. 17mm
Automatic cable tie machine is with a host machine and a handheld tie gun. This cable tie machine is only for binding nylon cable ties, not making nylon zip ties.
Performance characteristics of cable tie cutter machine
1. There are two languages in touch screen(Chinese and English). The text language can be set according to the customer's needs and now there are Italia and Chinese in the touch screen.
2. Automatic cable tie tool gun has stable performance and long service life. It can be used many years if operator use it carefully.
3. Adopt imported brand PLC control, provide stable working procedures, imported drivers, high degree of automation.
4. The intelligent temperature control meter is used for stable control, and the temperature difference is small.
5. The cable tie gun has the advantages of sensitive action, fast binding speed, adjustable binding force and stable performance.
6. Using the automatic cable tie machine for automatic cable tie binding, wire harness factory/operator can reduce the work intensity of workers/reduce the operation steps of workers.
Technical parameters of metal able tie tool
Cable tie machine model: SWT25100H
The size of the cable tie used by the cable tie machine: T25100
Bundled speed: 0.7S
Bundled item size:2mm-17mm
Power supply: 220V, 50Hz/60Hz, 1KW
Host machine weight/kg : G.W. 140kg
Host machine size mm : 69*67*67cm
|
Model |
SWT25100H |
Power supply | 220V, 50Hz/60Hz |
| Bundled speed |
0.7S |
Pneumatic pressure |
5kg/cm2 |
| Bundled item size |
2-17mm |
Power |
1KW |
| Host machine size |
L69*W67*H67cm |
Cable tie gun size |
L25*W10*T6.4cm |
| Host machine kg | 140 kg | Cable tie gun weight |
0.85kg
|
The automatic cable tie machine is suitable for binding items:
Wire harness, platic bags, coper tubes and so on.
Delivery display of automatic cable tie system
When the cable tie machine is shipped, we will use stretch film and pearl cotton to wrap it around for protection and then build a wooden frame to avoid problems during transportation and damage the interests of customers.
RFQ's can be emailed to sales@sz-swift.com
Include the following documentation:
| 1. The size of nylon cable ties you are using. |
| 2. The picture of product that you use nylon cable tie to bundle. |
| 3. The bundle diameter of product. |
| 4. The video/picture about how you use nylon cable tie to bundle the products. |
Clients can chose automatic cable tie machines based on these details or inform us then, we could suggest one auto cable tie machine for you.
FAQ
| Question | Answer |
| 1. Do automatic cable tie machines make nylon cable ties? | No, they can not make nylon cable ties. But they can bundle nylon cable ties in fast speed. |
| 2. Different cable ties can be used in automatic cable tie bundle machine? |
No, different cable ties can be used in different auto cable tie machines. And automatic cable tie guns ask for good quality nylon cable ties. |
| 3. How long is it for the warranty? | 1 year and tech support all life. |
Video
Video
Video
Video
|
