SWT25100H Automatic Cable Tie Machine Management 0.7S Speed 17mm Dia For Wire Harness

SWT25100H Bundle Cable Tie Machine For Wires 0.7S Speed 17mm dia.

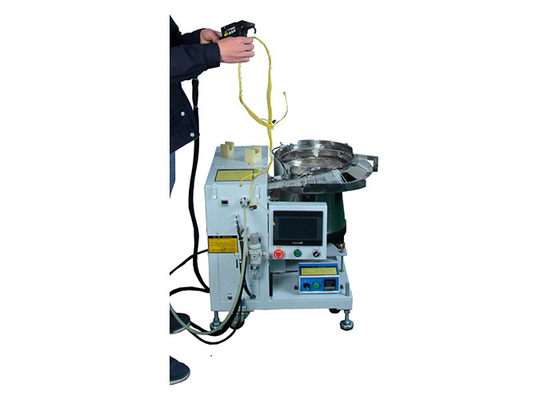

Automatic cable tie machine SWT25100H consists of a handheld tie gun and a host machine. Using the tie gun, operator can bundle the places the he wants.



Performance characteristics of hand-held automatic cable tie machine



1. The touch screen displays in full Chinese (or English), and the text language can be set according to the customer's needs. The brand touch screen clearly displays each working situation and is easy to operate.



2. The gun heads of Schweide's individual cable tie machines are assembled and debugged by technicians with many years of experience. The cable tie machine gun head has stable performance and long service life.



3. Adopt imported brand PLC control, provide stable working procedures, imported drivers, high degree of automation.



4. The intelligent temperature control meter is used for stable control, and the temperature difference is small, which can be controlled within 2°



5. The device binding speed can directly adjust the corresponding parameters on the touch screen. It will be set according to a certain speed when leaving the factory. If the customer needs to change it, it is recommended to reset it after using the cable tie machine for a period of time;



6. The cable tie gun has the advantages of sensitive action, fast binding speed, adjustable binding force and stable performance.



7. Use the automatic cable tie machine for automatic cable tie binding, reduce the work intensity of workers/reduce the operation steps of workers.



8. The cable tie machine is used for binding on the assembly line. Due to the fast binding speed and stable performance, it can meet the requirements of the production line, reduce the working pressure of workers and avoid the accumulation of products under the equipment. At present, a large number of customers use our company's cable tie machine to be used on a fully automatic production line or with a manipulator.



Technical parameters of cable tie machine



Cable tie machine model: SWT25100H

The size of the cable tie used by the cable tie machine: T25100

Bundled speed: 0.7S

Bundled item size:2mm-17mm

Power supply: 220V, 50Hz/60Hz, 1KW

Host machine weight/kg : G.W. 140kg

Host machine size mm : 69*67*67cm



Model	SWT25100H	Power supply	220V, 50Hz/60Hz
Bundled speed	0.7S	Pneumatic pressure	5kg/cm2
Bundled item size	2-17mm	Power	1KW
Host machine size	L69*W67*H67cm	Cable tie gun size	L25*W10*T6.4cm
Host machine kg	140 kg	Cable tie gun weight	0.85kg





The automatic cable tie machine is suitable for binding items:



Wire harness, platic bags, coper tubes and so on.





Delivery display of cable tie machine



When the cable tie machine is shipped, we will use stretch film and pearl cotton to wrap it around for protection and then build a wooden frame to avoid problems during transportation and damage the interests of customers.





RFQ's can be emailed to sales@sz-swift.com

Include the following documentation:

1. The size of nylon cable ties you are using.
2. The picture of product that you use nylon cable tie to bundle.
3. The bundle diameter of product.
4. The video/picture about how you use nylon cable tie to bundle the products.

Clients can chose automatic cable tie machines based on these details or inform us then, we could suggest one auto cable tie machine for you.



FAQ

1. Do automatic cable tie machines make nylon cable ties?

No, they can not make nylon cable ties. But they can bundle nylon cable ties in fast speed.

2. Different cable ties can be used in automatic cable tie bundle machine?

No, different cable ties can be used in different auto cable tie machines.

And automatic cable tie guns ask for good quality nylon cable ties.

3. How long is it for the warranty?

1 year and tech support all life.

4. Do you have CE?

Yes, all automatic cable tie packing machines has CE certificate.
