| Brand Name: | SWIFT |
| Model Number: | SWT36100H |
| MOQ: | 1pcs |
| Price: | Negotiation |
| Delivery Time: | 10 - 15days |
| Payment Terms: | T/T |

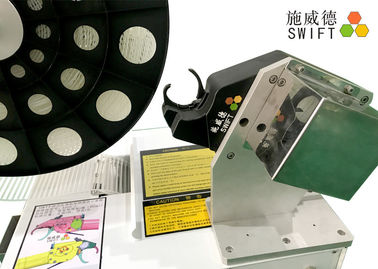

SWT36100H Handheld Automatic Cable Tie Gun For Wire Harness In Board
Handheld cable tie gun is connected with the host machine. There is a 2.2m length feeding tube between the cable tie gun and the host. This type machine often used to bundle wire harness in board or in home appliance. Such as oven wire harness, air condition wire harness, rice cooker wire harness etc.
Technical data
| Model | SWT36100H |
| Cable tie size | W3.6 * L100mm(Nylon cable ties) |
| Bundle diameters range | 2mm – 18mm |
| Bundle speed | 0.8S |
| Tension forces(Adjustable) | 0(2kg), 1(3.5kg), 2(5.5kg), 3(6.5kg), 4(8kg) |
| Cable tie gun weight | 0.86kg |
| Cable tie gun voltage | DC24V(Auto switch) |
| Host machine voltage | AC220V, 50/60Hz |
| Power | 1,000W |
Advantage Of Cable Tie Manufacturing Machine
1. Release hands to handle work pieces. The bundling is done by automatic cable tie gun.
2. Loose nylon cable ties would be sorted and transferred into the cable tie gun automatically.
3. When operator treads the foot pedal, cable ties would be started packaging.
4. Silicone hose is placed between the cable tie gun claws. It would be bundled once you tread the pedal.
5. 0.8S – 1.0S to wrap, tighten and cut off per nylon cable tie.
6. Max bundle diameter for work piece is 22mm. Be automatically adapted different diameters.
7. Ideal for applications with high quality requirements, e.g. large-scale series production.
8. Voltage: AC220V – AC240V, 50/60Hz.
9. There are different binding forces and they are adjusted.
Instructions
1. Put nylon cable ties into vibration bowl.
2. Adjust the knob to the required tension force for cable ties.
3. Place the bundled objects into the middle of Jaws of cable tie gun.
4. Touch the trigger, cable ties would be wrapped the objects, tightened and cut off. The cable tie gun would cut the excess tie when it reaches the tension.
Packing info
| Item | Size | G.W./kg | N.W./kg |
| Host machine/wooden case | 73*70*86cm | 93 | 73 |
| Vibration bowl/wooden case | 72*56*63cm | 66 | 53 |
Why you need automatic cable tie gun?
1. You simply aim at the bundled wire harness with cable tie gun and then touch the trigger to quickly fasten cable ties.
2. It is easy to finish bundling lots of nylon cable ties in short time.
3. A cable tie gun can replace 2 workers, save labor cost and time.
FAQ
1. Why do nylon cable ties jam on the vibration bowl?
Please check whether the interface between the vibration bowl and the machine is well connected. After reconnecting the interface, tighten the four small fixing screws of the vibration bowl, allow the vibration bowl to be full of nylon cable ties before starting work. In addition, many burrs or deformations of nylon cable ties can also cause jamming, and you need to pick out the bad cable ties.
2. Can I use T36100 and T25100 in one machine?
No, their width is different. The vibration bowl can deal with one kind of cable ties.
3. Can I adjust the binding forces?
Yes, pls turn a knob to adjust them. The max is 8kg.
Video
Video
Video
Video
|
