Bundle Fast Tightly Automatic Cable Tie Tool For Motor Coil Wire Harness

Bundle Fast Tightly Automatic Cable Tie Tool For Motor Coil Wire Harness



Automatically cable tie gun can automatically tie nylon cable ties and cut the excess materials after tightening. The bundle speed is 1.0Seconds per cable tie.

Automatic cable tie tool specifications



Model	SWT25100M
Cable ties model	T25100
Cable tie size	W2.5 * L100mm
Cable ties material	Nylon 6.6
Min banding Dia.	ø9 mm
Max banding dia.	ø13 mm
Operation speed	1.0s/cable tie
Electrical power	Host: AC 220V, 50/60 Hz, different plugs
	Tool: DC 24V(automatic switching)
Pneumatic pressure	5 Kg/ cm²
Power	1KW
Weight	Host:146 kg ( With 4 wheels, move easily )
	Gun: 6kg
Size	Host: L690 * 670 * 670mm
	Gun: L331 * W282 * H189mm
Certificate	CE & RoHS



Features



1. Use the loose cable ties, automatically bundle nylon cable ties.



2. Once tread the pedal, automatically start to bundle.And the rubbish would be collection.



3. The whole operation takes only 1.0S.



4. Be suitable for motor coil bundling or bundling those objects which has small space for the cable tie to go through.







How to operate automatic cable tie tool?



1 . Take 200 - 300pcs bulk cable ties into the vibration at random.



2 . Let the motor coil under the gun claw and tread the pedal. It will automatically bundle it.



3 . No cable ties left in the vibration overnight. Or it is easy to make them deformed.



4 . If you are not the technical engineer, don't operate the "manual".



5 . If the binding force is small, you can turn the knob to adjust it.



Advantage Of Cable Tie Manufacturing Machine

1. Release hands to handle work pieces. The bundling is done by automatic cable tie gun.

2. Loose nylon cable ties would be sorted and transferred into the cable tie gun automatically.

3. When operator treads the foot pedal, cable ties would be started packaging.



Touch screen details





1. Cycle time: The time required for each work cycle.



2. Actual output: each work cycle in the previous calculation on the basis of the cumulative superposition and once, when the count reaches set production machine stopped running, and began to call the police, operators need to deal with abnormal equipment, click on the reset button to remove the alarm and count the production.

3. Set Value: click the icon to set the planned output.

4. Manual screen: when the operator clicks the button, it enters the manual operation screen



Related products



Model	SWT25100M	SWT36100M	SWT36120M
Cable tie size	W2.5 * 100mm	W3.6 * L100mm	W3.6 * L120mm
Min banding Dia.	ø9 mm	ø9 mm	ø11 mm
Max banding dia. for wire	ø13 mm	ø13 mm	ø15 mm
Operation speed	1.0s	1.0s	1.2s



How does the machine work?

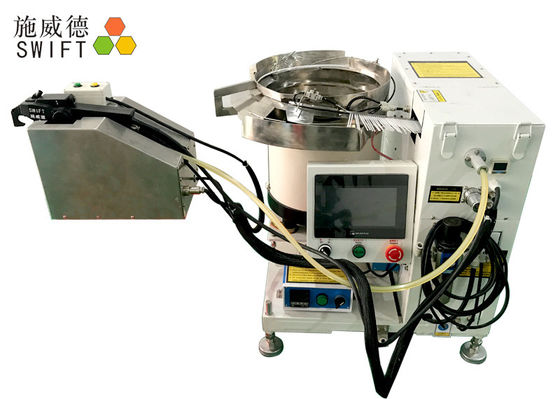

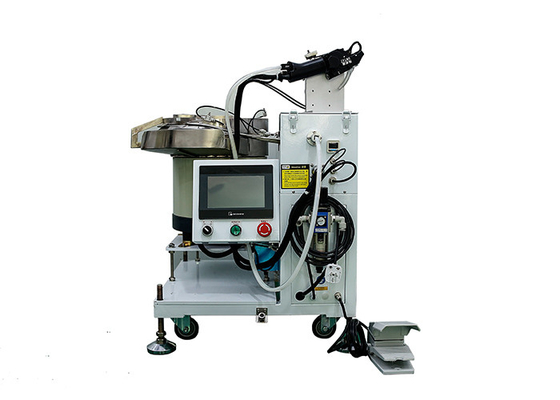

The machine consists of the host machine, the vibration bowl and the gun. The bowl is set on the host. The gun is connected to the host by the feeding hose and the data hose.



We have set data before the machine is shipped. So when you receive it, pls power on, touch the 'AUTO', tread the pedal, it will automatically bundle the motor coil. You spend about 1.0S to bind one.



FAQ



1. What is the warranty?



12 months.



2. What shuld I do if the machine has anythin wrong?



If it has somthing wrong, pls find the tipes and you could deal with it according to them. Or take some videos and ask for help from our team.
