1.3S SWT36200FC Automatic Bundle Tool For Coils Of Polyester Monofilaments

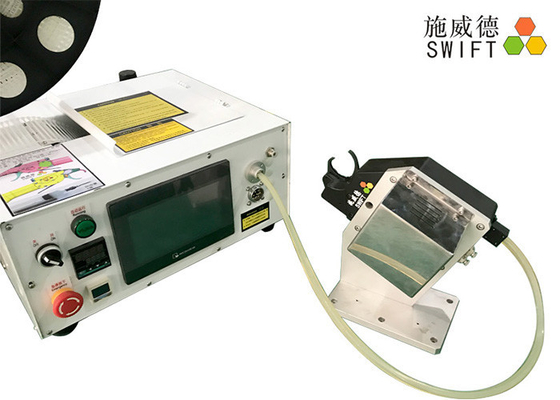

Automatic bundle tool SWT36200FC is with a fixed cable tie gun and a roll of nylon cable ties. The bundle diameters are from 15mm to 42mm. 42mm is the max bundle diameter. If bundled object is more than 42mm, the tool can‘t bundle or it would get bad..
Technique data
Model | SWT36200FC |
Cable ties size | W3.6 * L200mm(reel nylon cable ties) |
Min bundle diameter | 15mm |
Max bundle diameter for tube | 40mm |
Max bundle diameter for wire | 42mm |
Operation speed | 1.3S per setting |
Bundle forces | 2kg-8kg |
Fixed cable tie gun weight | 4.2kg |
Host weight | 30kg |
Power | 1,000W |
Fixed gun voltage | DC48V |
Voltage | AC220V, single phase, 50/60Hz |
Pneumatic pressure | 5kg/cm² |
Feature Of Automatic Cable Tie Machine
* Supports 9.95 to 11.3Gb/s bit rates
* Simplex LC Connector
* Hot-pluggable XFP footprint
* Cooled 1490nm EML transmitter, 1550nm APD receiver
* Cooled 1550nm EML transmitter, 1490nm APD receiver
* Applicable for 80km SMF connection
* Low power consumption, < 3.5W
* Digital Diagnostic Monitor Interface
* Optical interface compliant to IEEE 802.3ae 10GBASE-ZR
* Electrical interface compliant to SFF-8431
* Operating case temperature: Commerical:0 to 70 °C
Applications
Use in the production of high-volume.The automatic bundle tool SWT36200FC can bind up to a diameter of 42mm. It can be used in wire harness industry, medical industry, electronics industry so on. It can speed up bundling processes and make the production more efficient.
Once operator treads the pedal, cable tie would be bundled, pulled and tightened, and cut. And the bundle forces are adjustable.
There are 4,000pcs cable ties per roll. Operator doesn’t often install the roll into the machine.
Package list
Item | Qty |
Host machine | *1 |
Fixe cable tie gun | *1 |
Feeding tube | *1 |
A plastic box | *1 |
An air tube | *1 |
English manual | *1 |
Small tool case | *1 |
Foot pedal | *1 |
Packing information
Item | Size | G.W./kg | N.W./kg |
SWT36200FC/wooden case | 70*60*70cm | 48 | 38KG |
Product install
1. Frame for the tray: install it in the back of the host machine.
2. Pressure regulating value: connect the air tube with this value.
3. Fixed cable tie gun: install the feeding tube and the data cable between it and the host machine.
4. Foot pedal: install it in the host machine.
Video
This machine belongs to a client from Israel.
