Save Time Electric Automatic Cable Tie Tool Gun For Christmas Light Theme
SWT36200HC is easy to use for workers. It helps you to save time and cost. One machine saves 3 workers' cost.
|Name||Automatic cable tie tool|
|Cable tie spec||W3.6 * L200 mm|
|Min banding Dia.||Ø 20 mm|
|Max banding dia. for wire||Ø 43 mm|
|Max banding dia. for tube||Ø 42 mm|
|Operation speed||1.3S every cable tie|
|Electrical power||Host : AC 220V 50/60 Hz|
|Tool head : DC 24V, auto switch|
|Pneumatic pressure||5Kg / cm²|
1. It is a small machine without vibration bowl. There are a host machine and a handheld cable tie gun.
2. Handhled cable tie gun is light, about 0.91kg. When you touch the trigger, the cable tie gun starts to wrap, tighten and cut off nylon cable ties. And the rubbish is collected into a box.
3. Finishing all actions take 1.3S every cable tie.
4. The automatic cable tie tool SWT36200HC only uses reel cable ties C36200. You can not use other sizes in this machine.
5 . The binding forces are adjusted.
6 . Voltage: AC220V, 50/60Hz; different plug.
Application Of Cable Tie Manufacturing Machine
suitable for binding wire harness of airplane, train, ship, automobiles, communication equipment, home appliances and other large electromechanical equipment, etc. Also , applicable to packing and fixing of other products, such as food packing, gas & liquid transporting tube connector, etc.
|Cable tie gun type||Handheld||Fixed||Handheld|
|Cable tie spec||W2.5 * L80 mm||W2.5 * L120 mm||W2.5 * L100 mm|
|Cable tie type||Loose cable tie||Loose cable tie||Reel cable tie|
|Min banding Dia.||Ø 2 mm||Ø 2 mm||Ø 3 mm|
|Max banding dia.||Ø 14 mm||Ø 22 mm||Ø 18 mm|
Advantage Of Cable Tie Manufacturing Machine
1. Release hands to handle work pieces. The bundling is done by automatic cable tie gun.

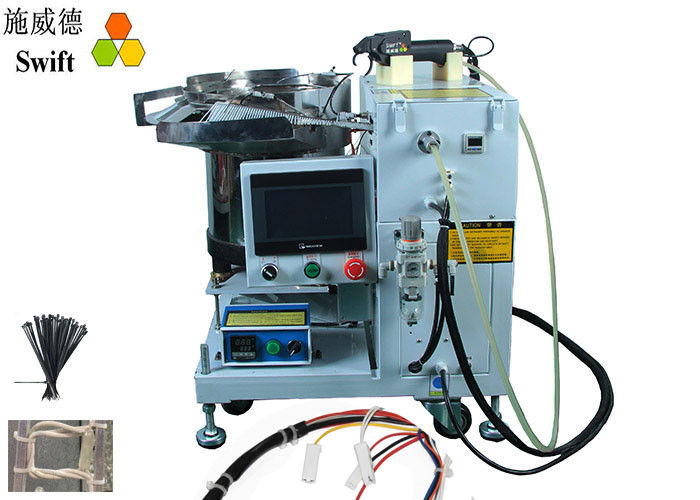

2. Loose nylon cable ties would be sorted and transferred into the cable tie gun automatically.
3. When operator treads the foot pedal, cable ties would be started packaging.
4. Silicone hose is placed between the cable tie gun claws. It would be bundled once you tread the pedal.
5. 0.8S – 1.0S to wrap, tighten and cut off per nylon cable tie.
6. Max bundle diameter for work piece is 22mm. Be automatically adapted different diameters.
7. Ideal for applications with high quality requirements, e.g. large-scale series production.
