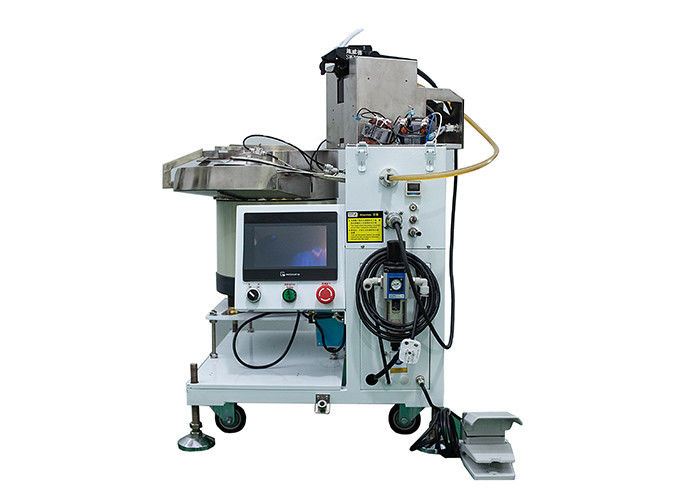

80N 0.7S Automatic Cable Tie Tool For Installing Nylon Tie Wraps

80N 0.7S Automatic Cable Tie Tool For Installing Nylon Tie Wraps

  • High Light

    60Hz Automatic Cable Tie Tool

    ,

    Cable Tie Tool for Nylon Wraps

    ,

    2400 pcs/h Automatic Cable Tie Tool

  • Name
    Automatic Cable Tie Tool
  • Cable Tie Spec
    T36100, W3.6 * L100mm
  • Operation Speed
    0.7S Per Cable Tie
  • Bundle Capacity
    1800-2400pcs/h
  • Bundle Forces
    20N - 80N Adjustable(5forces)
  • Electric Voltage
    AC220V, 50/60Hz
  • Place of Origin
    China
  • Brand Name
    SWIFT
  • Certification
    CE
  • Model Number
    SWT36100H
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiation
  • Packaging Details
    Wooden cases
  • Delivery Time
    12 - 15days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

80N 0.7S Automatic Cable Tie Tool For Installing Nylon Tie Wraps

80N 0.7S Automatic Cable Tie Tool For Installing Nylon Tie Wraps



Worker could adjust different binding forces based on the bundle situations. It is very easy to do that.



Description of automatic cable tie equipment



1. Using loose cable ties, vibration bowl feeding, transferring to the tie gun via hose.



2. Handler treads the foot pedal, nylon cable ties would be packed automatically.



3. 20-80N binding forces adjustable



4. Bundle cycle time: 0.9S per cable tie



5. Bundle capacity: 1800 – 2400pcs/hour



6. Applicable nylon cable ties: T36100, width 3.6 * length 100mm.



7. The fixed cable tie gun can provide bigger tightening force than other methods. When manual tools or other type of machine could not tighten the harness with PVC sleeve or bags sealing, then this type of machine might be your better choice.



Information of automatic cable tie tool



Model SWT36100F
Cable tie gun Handheld cable tie gun
Batteries included No
Batteries required No
Applicable cable tie width 3.6mm
Applicable cable tie length 100mm
Applicable cable tie head L6.1 * W5.9 * H4.6mm
Bundle diameter ø3- ø 18mm
Bundle forces 20 - 80N adjustable
Bundle speed 0.9S/cable tie
Bundle productivity 1800-2400pcs/h, including the time of picking and placing products
Host machine L89*W90*H79cm
Cable tie gun L278*W240*H149mm
Voltage AC220V, 50/60Hz
Pneumatic pressure 5kg/cm²



Advantages of automatic cable tie machines



1. The tie gun can be fixed in the table or other places and it is triggered by foot pedal. So hands are free. It is more convenient to bundle some special items.



2. The cable tie machine deals with loose cable ties in short time. It helps to improve the bundle efficiency.



3. It is easy to adjust the binding forces.



80N 0.7S Automatic Cable Tie Tool For Installing Nylon Tie Wraps 0



Applications



Applications
1. Wire harness, wire cable management
2. Sealed PE bags in food industry/medical industry
3. Copper tubes in air conditioning or refrigerators
4. Damping blocks bundled





Advantage Of Automatic Cable Tie Tool

1. Release hands to handle work pieces. The bundling is done by automatic cable tie gun.

2. Loose nylon cable ties would be sorted and transferred into the cable tie gun automatically.

3. When operator treads the foot pedal, cable ties would be started packaging.

4. Silicone hose is placed between the cable tie gun claws. It would be bundled once you tread the pedal.

5. 0.8S – 1.0S to wrap, tighten and cut off per nylon cable tie.





FAQ



1. Can I get free samples?



We can offer free nylon cable ties. Clients could let DHL/Fedex to pick them up from our factory. But we don’t offer free automatic bundle machines.



2. What is the lead time?



For automatic cable tie machines, 10-15working days



For nylon cable ties, it depends on your quantity.



3. Do you have a cable tie gun with battery?

No, we don’t have. All cable tie guns are connected to the host machine then can work.



4. Do you have service centers?



No, we don’t have. Our clients are from all over the world.
