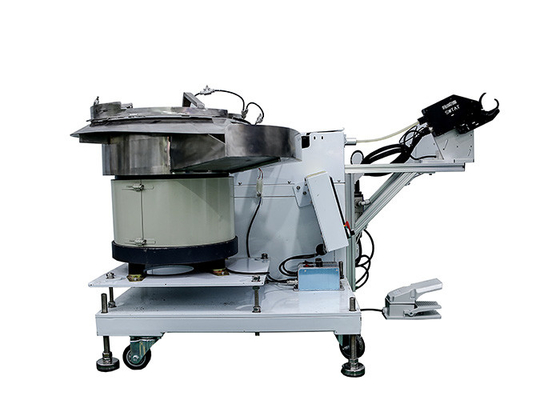

Easy Binding SWT36150F Automatic Cable Tie Machine For Plastic Bags
SWT3615F cable tie tention tool for quick bundle nylon cable ties. All operations would be done in 1S once tread the pedal.
Product features for automatic cable tie installation tool
1. Using loose cable ties T36150, W3.6* L150mm.
2. Bundle diameters: 2mm -31mm
3 Cable tie gun could be fixed in the bench or assembly line. So operators could hold items by two hands.
4. With a foot pedal. It begins to wrap, tighten and cut off cable ties once tread the pedal.
5. The binding forces are adjusted by turning a knob and the max is 8kgf.
6. Be able to handle the work pieces with step features.
7. It is easy to move with wheels and foot cups.
Product parameters
| 1 | Automatic cable tie gun– SWT36150F | ||
| 2 | Description | Automatically wrap, pull and tighten cable ties, cut the excess zip ties off one tread the pedal. | |
| 3 | Cable tie type | Bulk zip ties, T36150 | |
| 4 | Cable tie size | width | 3.6mm |
| Length | 150mm | ||
| Tie thick | 1.1mm | ||
| 5 | Tensile strength | 14kg | |
| 6 | Bundling diameter | Ø2 –ø31mm | |
| 7 | Operation speed | 1.2S/cable tie | |
| 8 |
Power supply
|
AC220-AC240V, 50/60Hz; Euro cords | |
| 9 | Pneumatic pressure | 5 Kg/cm² | |
| 10 | Tension force | Adjustable | |
Packing details
1/wooden case: 1040*950*900mm
G.W.: 220kg
N.W.: 177kg
Applications
Wires with PVC sleeve, bags sealing , the work pieces with step features and so on.
Why choose SWIFT automatic cable tie gun?
1. SWIFT Automation Technology is the leader of automatic cable tie tool in the world. No one would be more familiar to this machine than us.
2. There are more than 30+ patents in this field. Handheld automatic cable tie gun using loose cable ties is created by our company.
3. 300+ well-known companies all have purchased our machines. We have a rich experience in serve such big company.
FAQ
| FAQ | |
| Questions | Answers |
| 1. What is MOQ? | 1. MOQ: 1pcs |
| 2. What is the lead time? | 2. Machine would be ready within 15working days after receive payment. |
| 3. Can I use cable ties W3.6 * L100mm or W2.5 * L100mm in this machine SWT25120F? | 3. No, you can’t. SWT25120F can only deal with cable ties W2.5 * L120mm. |
| 4. Can I use our cable ties W2.5 * L120mm in SWT25120F? | 4. In general, it is ok to use other same size. We suggest you sending some to us to check. |
Packing picture
Video
Video
Video
Video
|
|
