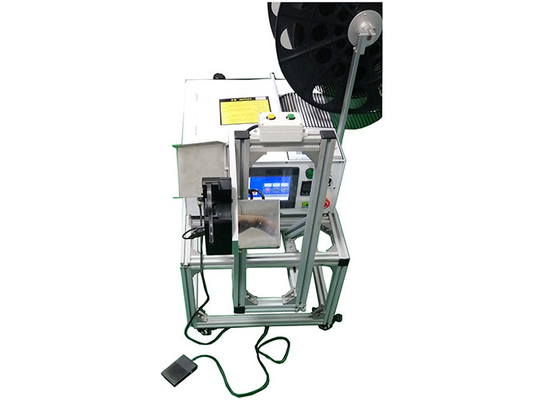

SWIFT SWT25100HC Electric Automatic Cable Tie Gun For Small Metal Wires
SWT25100HC is small automatic cable tie machine and easy to bundle wire harness with nylon cable ties. It is reliable and convenient, even during long-term use
Product specifications for SWIFT SWT25100HC zip tie tool
| Name | Automatic cable tie tool |
| Machine model | SWT25100HC |
| Cable tie spec | W2.5 * L100 mm |
| Min banding Dia. | Ø 2 mm |
| Max banding dia. for wire | Ø 17 mm |
| Max banding dia. for tube | Ø 16 mm |
| Operation speed | 1S every cable tie |
| Electrical power | Host : AC 220V 50/60 Hz |
| Tool head : DC 24V, auto switch | |
| Pneumatic pressure | 5Kg / cm² |
| Certificate | CE, RoHS |
Advantages
1. It is a small machine without vibration bowl. There are a host machine and a handheld cable tie gun.
2. Using reel cable ties C25100, 5000pcs/reel
3. Finishing all actions take 1.0S every cable tie.
4. The binding forces are adjusted.
5 . Voltage: AC220V, 50/60Hz; different plug.
Application
Be suitable for bundle different wire harness, plastic tubes or bags.
Other machines
SWT25080H is a cable tie machine that uses loose cable ties T25080.
| Other types | SWT25080H |
| Cable tie gun type | Handheld |
| Cable tie spec | W2.5 * L80 mm |
| Cable tie type | Loose cable tie |
| Min banding Dia. | Ø 2 mm |
| Max banding dia. | Ø 14 mm |
| Operation speed | 0.7S |
| Voltage | AC220V |
RFQ
1. Can I just buy the handheld cable tie gun?
No, you can't use it. The handheld cable tie gun is a part of the machine SWT36200HC.
2. How about the warranty?
12 months and tech support forever.
3. Is it acceptable to customize automatic zip tie machine?
Yes, it is. And we need to check first weather your cable ties are suitable to be applied in the cable tie machine.
