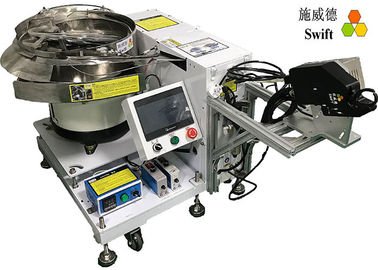

Auto Locking Nylon Automatic Cable Tie Machine SWT36200FC For Big Rubber Tubes
Auto Locking Nylon Cable Ties SWT36200FC Zip Tie Machine For Big Rubber Tubes
1. Be available to apply into full automation lines.
2. Bundle speed is 1.3S, be suitable for bundle big diameters items.
3. With more than 50 patents.
Advantages of automatic cable tie machines
1. Using reel cable ties, C36200, W3.6 * L200mm.
2. When operator treads the pedal, the machine starts to work, including wrapping, tightening nylon cable ties and cut them off.
3. All actions take 1.3S every cable tie, because the cable tie is 200mm and it is too long.
SWT36200FC cable tie tool of base data
| Description | Automatic cable tie tool | ||
| Model | SWT36200FC | ||
| Cable ties details | Cable ties type | Reel cable ties | |
| Cable tie model | C36200 | ||
| Cable tie width | 3.6mm | ||
| Cable tie length | 200mm | ||
| Tie thickness | 1.2mm | ||
| Tensile strength | 14kg | ||
| Quantity/reel | 4,000pcs | ||
| Max bundling Dia. for wire | 42mm | ||
| Min bundling Dia. | 20mm | ||
| Bundling speed | 1.3S | ||
| Cable tie gun details | Power | DC48V auto switch | |
| Weight | 5kg | ||
| Tension forces | Adjustable by turn knob | ||
| Power supply | AC220V, 50/60Hz | ||
| Pneumatic pressure | 5kg/cm² | ||
| Max Power | 1KW | ||
| Certificates | CE, RoHS | ||
Remark:
1. The binding force can be adjusted by turning a knob in the cable tie gun.
2. The run-in period of new cable tie gun is two weeks. During these time, pls don't adjust the max binding force(8kg).
3. After run-in period, the fact tension would be stronger than the value.
| The binding force | ||||
| The number | 0 | 1 | 2 | 3 |
| The Value | 2.0kg | 4.0kg | 6.0kg | 8.0kg |
Trading details
1. Payment terms: 100% TT before ship.
2. Delivery date: 10-12days
3. Warranty: 12months
4. Tech support forever.
Packing details
The automatic cable tie machine would be packed in a wooden case.
| Item | L * W * H/cm | Weight/kg |
| The host machine | 52 * 48 * 24cm | 31kg |
| Packing size | 62 * 59 * 62cm | 45kg |
RFQ
1. Do you have videos that other clients used the machines?
Yes, we have. Our clients are from Turkey, Spain and UK so on.
2. Can I buy other reel cable ties from other supplier?
No, C36200 is made by our SWIFT company.
3. If the cable tie machine SWT36200FC has anything wrong, what should I do?
Pls take some videos to us, we could find the problems and help you to solve it.
