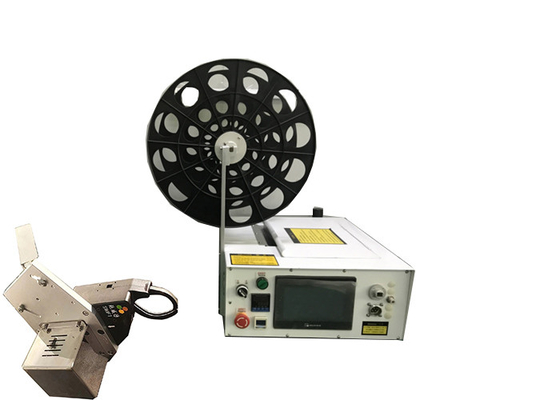

1.1S Touch Screen Eletric Nylon Cable Tie Machine For Smooth Cutting Edges
SWT25100FC automatic cable tie gun bundles wire harness in the speed of 1.1S.
There are many functions to improve the machine’s reliability and stability.
SWT25100FC automatic cable tie system specifications
| Automatic cable tie gun SWT25100FC | |||
| Model | SWT25100FC | ||
| Cable tie type | Reel cable ties | ||
| Cable tie size | width | mm | 2.5 |
| inch | 0.1＂ | ||
| Length | mm | 100 | |
| inch | 4.72＂ | ||
| Tie thick | mm | 1.1 | |
| inch | 0.04＂ | ||
| Tensile strength | IBS | 18 | |
| KG | 8 | ||
| Bundling diameter | mm | Ø3 –ø18 | |
| Operation speed | seconds | 1.0s | |
| The host machine size | mm | L710 * W470 * H230 | |
| The gun head size | mm | L250 * W102 * H64 | |
| Power supply | V | AC220V, 50 / 60Hz, Euro plug | |
| Pneumatic pressure | Kg/cm² | 5 | |
SWT25100FC features
1. 5,000pcs nylon cable ties in reel. Place it in the host machine.
2. With auto detect failure function. If the tool fails to operate cable tie, it would stop working, deal with them and automatically restart.
3. The machine could count the qty of cable ties successfully bundled already.
4. The tensile forces adjustable.
How to use SWT25100FC automatic cable tie system?
Place reel cable ties – Power on – “Auto” mode – Click "Start" – Pull the trigger – start to bundle
Company service
1. Technical support
Customized is welcomed. We have a strong R & D department. If you want to customize a automatic cable tie machine with a robot arm, pls contact our sales team.
2. After sales service.
We are here all the time. Pls don’t worry, if have any problems, pls free to contact us any time.
FAQ
1. A: If the machine has anything wrong, what should I do?
Q: Pls free to contact and send videos to us. We would guide you how to solve it. It is easy to do.
2. A: Do you often attend the fairs?
Q: Yes, we often attend the fairs in China, Germany and USA. Sometimes we would spend time visiting our clients in Euro.
Our services cover all industries and reach all parts of the world.
