0.7S SWT25100H Automatic Cable Tie Tool For Wire Harness Connectors
1. Using nylon cable ties 2.5 * 100mm and bundle one zip tie in 0.7S.
2. Bundle tensions from 2kg to 8kg
3. Bundle diameters from 2mm to 18mm.
Description of cable tie tensioning tool SWT25100H
1. Pulling the trigger, automatically wrap, pull & tighten, cut off, collect the waste material into waste tank.
3. There is a small handheld cable tie gun and operator could adjust the bundle tensions in the cable tie gun.
4. With touch screen, easy to manage. English/Chinese language.
5. Binding forces : 2kg, 3.5kg, 5kg,6.5kg,8kg
6. Voltage : AC220V, 50/60Hz
7. The feeding tube length 1.5m.
Specifications of automatic cable tie machine
| Machine model | SWT25100H |
| Cable ties model | T25100 |
Cable tie spec |
2.5*100mm |
| Min banding Dia. | ø2.0mm |
| Max banding dia. for tube | ø18mm |
| Operation speed | 0.7S |
| Host size & weight | L725* W710* H670mm, Weight: 150kg |
| gun size(L*H*T mm) | 256*108*66 |
| gun weight | 0.86kg |
| Electrical power | Host : AC 220V 50/60 Hz Gun : DC24V Power:1000W |
| Pneumatic pressure | 5 Kg/cm² |

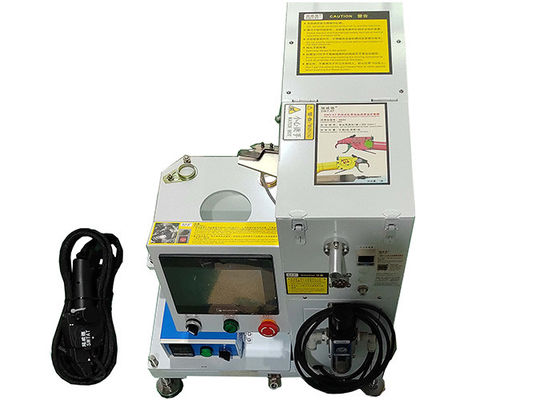

Automatic cable tie bundle machine SWT25100H
1. Vibration bowl: Pls connect with the host machine. Loose cable ties would be sorted here.
Remark: Operator can adjust vibrating frequency to control the sorting speed.
2. The feeding tube is used to transfer cable ties into cable tie gun. And its length is 1.5m.
3. Data cable: It connect the handheld cable tie gun and the host machine.
4. There are four wheels to move the cable tie machine easily.
Application
wire harness, cable harness, Christmas light tubes
FAQ
1. Do you have Enghlish manual?
Yes, Chinese/English/Italian etc.
2. Could I get longer feeding tube?
Yes, you could get it but shorter tube, better transferring effect.
Machines were packed.
