| Brand Name: | SWIFT |
| Model Number: | SWT25100H |
| MOQ: | Negotiable |
| Price: | Negotiation |
| Delivery Time: | 12 - 15 working days |
| Payment Terms: | T/T |

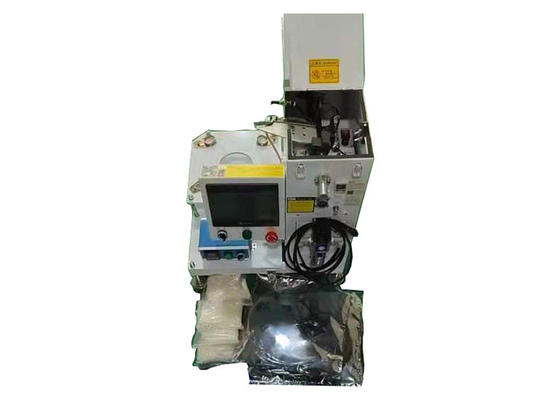

0.5Mpa AC220V Nylon Cable Tie Machine Fast Bundle 0.7S Zip Tie Tool
Automatic cable tie machine can bind nylon zip ties in 0.7S. SWT25100H cable tie machine can save 2 workers or even more.
Working principle
1. Core working principle: After handler pulls the trigger, cable tie will be sent to the gun head and wrapped, tightened and cut, and the cut tail material will be automatically collected into the trash bin/box.
2. Operation process: put nylon zip ties – product delivery – handheld zip tie gun binding nylon tie wraps – finishing bundling nylon ties and collecting the waste
Specifications of cable tie machine
| Model | SWT25100H | Operation speed | 1pcs zip tie/0.7S |
| Applicant nylon cable zip ties | T25100 | Bundle productivity | 2400pcs-3600pcs(related to auxiliary time of picking up and placing product) |
| Applicant nylon tie size | W2.5* L100mm | Binding forces | 20 - 80N adjustable |
| Head size of nylon tie | 4.8*4.8*3.8mm | Zip tie gun weight | 0.85kg |
| Applicant product diameters | Ø2 – Ø18mm | Voltage | AC220V, 50/60Hz |
| Power | 1000W | Pneumatic pressure | 5kg/cm² |
Features of cable tie tightening tool
1. Bundle diameter for wire harness: 2mm - 18mm.
2. The main material of the equipment is stainless steel and high-grade aluminum alloy. The overall structure is firm and beautiful.
3. The vibrating plate automatically divides nylon zip ties, arranges cable ties, and facilitates transportation.
4. Cable tie will be binded, tightened and cut off.
5. The cut waste will be recycled to the trash bin.
6. The binding force can be adjusted from 20N to 80N.
7. Voltage: AC220V, 50/60Hz and pneumatic pressure: 5kg/cm²
Application
Applicant zip ties: T25100.
Applicant products: wire harness in the board, cable harness in the oven, harness in the PCBA, electric cable harness etc.
Applicant industry: wire harness industry, home appliance, PCBA industry, camouflage netting
Cases:
Advantages
1. Our factory has more than 10 years’ history and is serving over 400 clients from all over the world.
2. We have over 50 patents and are developing cable tie installation machines and nylon zip ties only. We are very professional in this industry.
FAQ
1. Does cable tie gun SWT25100H deal with nylon ties T25100 only?
Yes, it does. However, we could customize one based on your cable ties only they can be used in cable tie machine.
2. How could I adjust the binding forces?
Pls turn the knob in the tie gun to adjust the forces you need. Different number means different forces.
3. What should I do if the cable tie machine has something wrong?
Pls take some videos to us and we would help you solve it.
Video
Video
Video
Video
Video
Video
|
|
