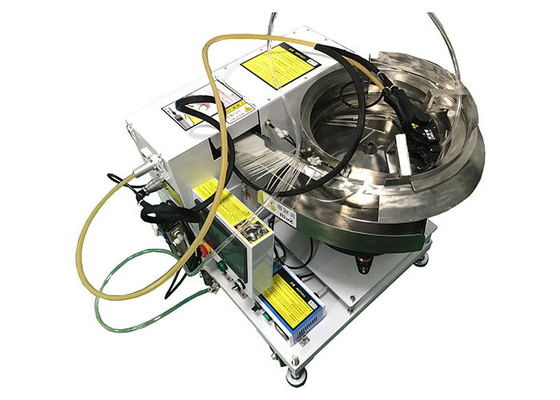

Bundle Force 8kg Nylon Cable Tie Machine For Cable Harness Assembly

Bundle Force 8kg Nylon Cable Tie Machine For Cable Harness Assembly

  • High Light

    8kg Nylon Cable Tie Machine


    AC220V Nylon Cable Tie Machine


    AC220V Plastic Tie Machine

  • Product Name
    Automatic Twist Tie Machine
  • Operation Speed
  • Cable Tie Spec
    2.5 * 100mm
  • Banding Dia.
    Ø2.0mm - Ø18mm
  • Voltage
    AC220V - AC240V,50/60Hz
  • Bundle Capacity
    2400pcs/h Or More
  • Bundle Force
    80N Adjustable
  • Pneumatic Pressure
  • Place of Origin
    Made in china
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Packed in wooden case
  • Delivery Time
    15 working days after received your payment
  • Payment Terms
    100% T/T
  • Supply Ability
    300pcs per month

Bundle Force 8kg Nylon Cable Tie Machine For Cable Harness Assembly

Bundle Force 8kg Nylon Cable Tie Machine For Cable Harness Assembly


1. Easy handheld zip tie gun. It is actived by pushing the trigger in tie gun.

2. Take 0.7S to finish cable tie tightening and cuttting.

3. Easy adjust the binding forces.


Specifications of automatic cable tie machine


1. Automatic cable tie machine
Model SWT25100H
Bundle speed 0.7S per cable tie, not including the time of picking and placing objects.
Bundle productivity

2400pcs - 3600pcs cable ties

Applicant cable ties T25100
Length of cable tie 100mm
Head size of cable ties L4.8*W4.8*H3.8mm
Applicant bundle diameters for wire Ø2mm – Ø18mm
Applicant bundle diameters for tubes Ø2mm – Ø16mm
Machine size L670 * W660 * H670mm
Voltage AC220V, 50/60Hz
Pneumatic pressure 0.5Mpa
2. Trading information
Seaport Shenzhen, Guangzhou, or other place
Lead time 12working days
Packing Packed in wooden cases
Transport ways By sea, air, or DHL.


Features of nylon cable tie machine


1. Using nylon cable ties, 2.5 * 100mm. Different cable ties, different nylon cable tie machine.


2. Using handheld tie gun to bundle, it is neat and beautiful.


3. The binding diameters, 2mm to 18mm. Operater doesn't have to adjust it.


4. It is easy to handle. There are PLC control system and touch screen. And the zip tie gun starts to work once pulling the trigger.


5. The bindind forces are adjustable, from 2kg to 8kg.


6. The bundle speed is faster, about 0.7S.  Finishing single cable tie takes less then 1.5S. Operator can bundle 2400pcs or more in one hour.


7. Voltage: AC220V, 50/60Hz and Pneumatic pressure: 5kg/cm²


Advantage of automatic cable tie machine


1. SWT25100H cable tie tightening tool is stable and quickly.


2. The waste material would be collected into a box. Keep factory clean!


3. Our factory has more than 10 years experiences on automatic cable tie machines.




It is suitable for quickly tying nylon cable ties to wire harnesses, such as wire harness arrangement on tooling boards, internal wire harness binding of household appliances, etc.


It is widely used in household appliances, food packaging, medical accessories and other industries.


Packing info


Automatic cable tie machines would be packed in wooden cases.


Item Packing size/wooden case
Host machine *1


G.W./kg: 98kg

Handheld cable tie gun *1
Tool kit * 1
English manual *1
Vibration bowl * 1


G.W./kg: 67kg




1. Can I just buy the handheld cable tie gun?


No, you can’t. The tie gun can’t work alone.


2. Do you have a tie gun with battery?


No, we don’t have.


3. Is it ok to use other brand cable ties in SWIFT cable tie machines?


It depends on cable ties' quality. If they are suitable to use in auto cable tie machine, we could customize one based on other cabel ties.
