120mm Nylon Cable Tie Machine With Tie Gun Band Speed 0.7s
Zip tie machine, SWT25080H using the shortest cable ties, 80mm. And it can budle wire harness diameter 14mm.
The bundle speed is 0.7 cable tie. It is faster 2 or 3 times than tie by hand.
Advantages of automatic cable tie gun SWT25080H
1. Takes about 0.7S to fhinish bundling cable tie. And it can band 2400pcs 3600pcs nylon zip ties in one hour.
2 . Bundle diameters 2mm - 14mm. Zip tie gun can automatically adapt the different diameters.
3 . The banding tension are from 2kg to 8kg.
4. Operator can use the zip tie gun in different directions to bind cable ties.
4. PLC system and touch screen.

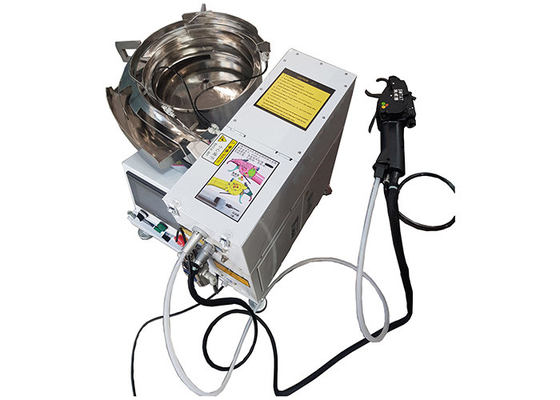

SWT25080H automatic cable tie machine - Handheld cable tie gun
| Product name | Cable tie machine | Model | SWT25080H | Using type | Handheld tie gun |
| Zip tie type | Loose cable ties | Cable tie width | 2.5mm | Cable tie length | 80mm |
| Size of host machine | Length 1040mm | Weight of host machine | 120kg | Machine material | Metal(Not plastic) |
| Width 640mm | |||||
| Height 750mm | |||||
| Power supply | AC220V, 50 / 60Hz ; | Power | 1KW | Pneumatic pressure | 5kg / cm² |
Applications
Wire harness, platic bags, tubes
Features of automatic cable tie machine
1. Stable and quickly. Many clients speak highly of SWIFT automatic cable tie machines.
2. After tightening the cable tie and cut it off, the waste material would be collected into a box.
3. Our factory has more than 10 years experiences on automatic cable tie machines.
Paking info
Automatic cable tie machines would be packed in wooden cases.
| Item | Packing size/wooden case |
| Host machine *1 | 75*70*84cm |
| Handheld cable tie gun *1 | |
| Tool kit * 1 | |
| English manual *1 | |
| Vibration bowl * 1 | 68*55*62cm |
FAQ
| Questions | Answers |
| 1 . What is the wear part for the machine? | The feeding tube, vibrating sheet |
| 2 . What is the warranty? | 1 year warranty |
Our products are sold all over the world, you can rest assured.
