| Brand Name: | Swift |
| Model Number: | SWT25120F |
| MOQ: | 1pcs |
| Price: | negotiation |
| Delivery Time: | 10-15days |
| Payment Terms: | T/T |
AC240V 80N Force Adjustable Automatic Cable Tie Tool Fast Easily 0.9S

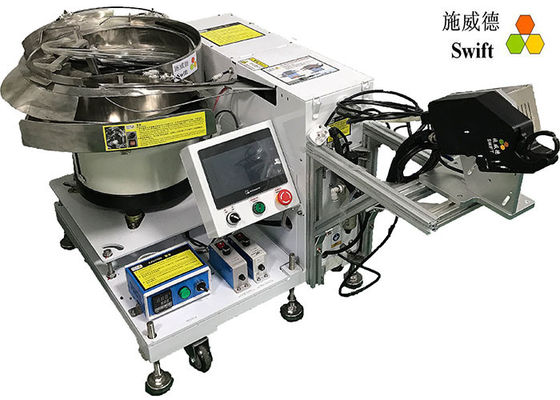

80N Force Adjustable Automatic Cable Tie Machine For Binding Nylon Plastic Ties Fast Easily 0.9S
To improve the bundle speed.
To reduce the bundle time.
To save labor cost.
Advantages of automatic cable tie machines
1. The cable tie gun is fixed in the bench. So worker can hold items by two hands.
2. Once treaded the pedal, the machine start to work and bundle items with cable ties.
3. Using loose cable ties W2.5 * L120mm, T25120, vibration feeding, transferred into the gun.
4. Nylon cable ties would be bundled, fastened and cut, and the waste would be collected into a box either.
5. The binding forces are adjustable from 20N to 80N. Different numbers means different forces.
6. Auto detecting jammed and dealing with it. If there is any cable tie jammed in the tool gun, the machine would stop running and clean the jammed cable tie, then restart again.
7. Automatic cable tie machine can improve the bundle productivity and it bundles faster 5 times than manual-binding.
Technical parameters of nylon zip tie tool
| Model | SWT25120F |
| Description | Automatic cable tie tool |
| Machine type | A fixed cable tie gun |
| Application | Automatically binding objects with cable ties. |
| Cable tie spec | W2.5 * L120mm, model T25120 |
| Cable tie features | 1. Straight without deformation, no tilt angle, tensile strength 8kg |
| Min bundle diameter | Ø2.0mm |
| Max bundle diameter for wire | Ø22mm |
| Max bundle diameter for tube | Ø20mm |
| The bundle speed | 0.9S |
| Host machine size | L725 * W710 * H670mm |
| Cable tie gun size | L284 * W240 * H149mm |
| Electric power | AC220V - AC240V, 50/60Hz |
| Pneumatic pressure | 0.5Mpa |
The machine is activated by the electricity and air source.
Features of automatic cable tie gun
1. Standard SWT25120F can only deal with nylon cable ties T25120.
2. The cable tie gun asks good nylon cable ties, they should be straight, no deformation and they are totally same with each other.
3. The machine doesn't ask for handler to tie, fasten and cut nylon cable tie step and step. It can finish these steps once operator treads the foot pedal.
Trade terms
1. 100% TT payment before shipment
2. Price: EXW
3. Delivery time: 15 working days
4. Sea port: Shenzhen or the places clients point.
Applications
Factories producing copper tubings in air conditions or frigerators, soft or plastic tubes in home appliance.
They would use lots of nylon cable ties and could use automatic cable tie guns to replace manual bundling.
Video
Video
Video
Video
|
|
