| Brand Name: | SWIFT |
| Model Number: | SWT25120M |
| MOQ: | 1pcs |
| Price: | Negotiation |
| Delivery Time: | 12-15days |
| Payment Terms: | T/T |

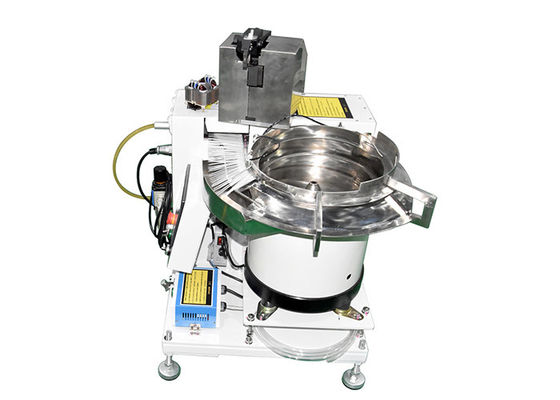

1.2 Second Automatic Wire Tie Tool 80N Fast Locking Cable Ties
Automatic cable tie machine could fast bundle nylon zip ties T25120, 120mm length * 2.5mm width.
It helps to save time and improve the bundle efficiency.
Features of nylon cable tie machine
1. The electric cable tie gun deals with loose cable ties, not reel cable ties.
2. Automatic cable tie machine not only could fast bundle nylon zip ties, but also test if nylon ties are good or bad.
3. Automatic cable tie machine can replace manual bundle.
4. There is PLC + touch panel controlling system. That is easy to manage the machine.
5. Once operator pedals foot pedal, nylon cable ties would be automatically tied, tightened and cut off in 1.2S.
6. Different waste material could be collected into a box.
7. The binding forces are adjustable 20 – 80N.
8. Automatic cable tie machine SWT25120M can bundle motor coils’ diameters from 11mm to 15mm.
Technical data of cable tie gun
| Model | SWT25120M |
| Cable ties model | T25120 |
| Cable tie size | W2.5mm * L120mm * T1.1mm |
| Cable ties material | Nylon PA 6.6 |
| Min banding Dia. | Ø11 mm(Suggest) |
| Max banding dia. | ø15 mm(Suggest) |
| Operation speed | 1.2s/cable tie |
| Electrical power | Host machine: AC 220V, 50/60 Hz, different plugs |
| Tie gun: DC 24V( connected with the host) | |
| Pneumatic pressure | 5 kg/ cm² |
| Power | 1,000W |
| Maximum tension force | 80 N (Adjustable) |
| Productivity | 1200 - 1500 pcs/h |
| Weight | Host machine:140 kg ( with 4 wheels) |
| Tie gun: 6kg | |
| Size | Host machine: L690 * 670 * 670mm |
| Tie gun: L33 * W28 * H19cm | |
| Certificate | CE & RoHS |
Application of nylon bundle cable tie machine
1. Be more suitable for bundling motor coils of vacuum cleaners, fretsaw motors and AC series motors.
2. Be suitable for bundle some special items with small room to go through cable ties.
Advantage of automatic cable tie machine for motor coils
1. Automatic cable tie machine can adapt different diameters objects tied nylon cable ties
2. The automatic cable tie gun can be fixed in the worktop and is triggered by the foot pedal. Hands are free.
3. Automatic nylon cable tie machine can bundle lots of nylon cable ties very fast.
4. Automatic detect failure: cable tie gun would stop working if there is any malfunction, and automatically deal with failed cable tie, then restart.
5. Voltage: AC220, 50/60Hz; Pneumatic pressure: 5kg/cm2
6. Operator can easily adjust the binding forces by turning a knob.
7. There are more than 400 clients using our automatic bundled machines and nylon cable ties.
About packing
1. Vibration feeder would be packed in a wooden case.
2. The host machine, the tie gun and other parts would be packed in a wooden case.
Packing list
| Vibration feeder | *1 |
| The host machine | *1 |
| The tie gun | *1 |
| English manual | *1 |
| A tool kit | *1 |
About delivery
1. Lead time for automatic cable tie machine: 12-15 working days
2. Lead time for nylon cable ties: 10 days(MOQ: 2,000,000pcs)
3. They could be shipped by air/DHL/FedEx/sea.
FAQ
1. How do I adjust the tension force?
There is a knob in the tie gun. Please turn it to adjust the force.
2. Can the tie gun deal with different cable ties?
No, the tie gun can deal with only kind of nylon zip ties.
3. Could I use nylon cable tie machine for motor coils to bundle wire harness?
No, we don’t suggest you doing like that. If your products are wire harness, handheld cable tie gun is more suitable. The tie gun of SWT25120M is designed for motor coils or some special objects.
