2400pcs/h 0.8S Automatic Cable Tie Tool For Nylon Zip Ties

2400pcs/h 0.8S Automatic Cable Tie Tool For Nylon Zip Ties

  • High Light

    0.8S Automatic Cable Tie Tool

    ,

    2400pcs/h Automatic Cable Tie Tool

    ,

    0.8S Auto Cable Tie Tool

  • Name
    Automatic Zip Tie Machine
  • Bundle Capacity
    1800-2400pcs/h
  • Bundle Forces
    20N - 80N Adjustable(5forces)
  • Cable Tie Spec
    T25100, W2.5 * L100mm
  • Max Bundle Dia.
    16mm
  • Min Bundle Dia.
    4mm
  • Operation Speed
    0.8S Per Cable Tie
  • Electric Voltage
    AC220V, 50/60Hz
  • Place of Origin
    China
  • Brand Name
    SWIFT
  • Certification
    CE
  • Model Number
    SWT25100D
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiation
  • Packaging Details
    Wooden cases
  • Delivery Time
    12 - 15 working days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

2400pcs/h 0.8S Automatic Cable Tie Tool For Nylon Zip Ties

2400pcs/h 0.8S Automatic Cable Tie Tool For Nylon Zip Ties

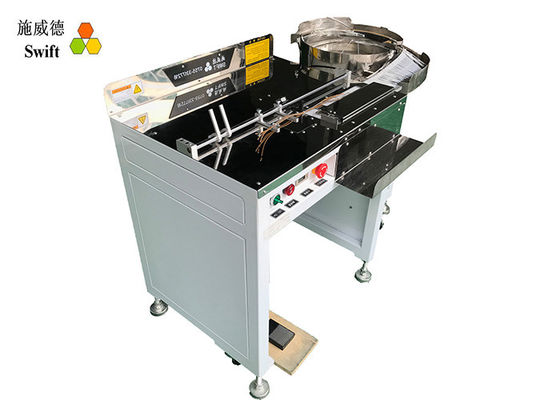

Handler puts nylon cable ties into the bowl feeder. When he treads the foot pedal, nylon zip tie would be wrapped, tightened and cut in 0.8S. One machine can save 2 workers’ cost.

Description of zip tie bundle machine

1. The binding forces are adjustable. The max force is 80N.

2. Using loose nylon tie wraps, T25100. 1000pcs/bag

3. The binding force is adjustable by turning the knob.

4. Pedal the foot pedal, automatically bundling, pulling and tightening, cutting nylon ties and collecting the waste material into the waste tank.

5. Could tighten harness with PVC sleeve, no need to pre-heating in advance.

6. The whole operation takes only 0.8S, not including auxiliary time.

Specifications of nylon zip tie installation machine

Model SWT25100D
Cable tie gun Without alone tie gun.
Batteries included No
Batteries required No
Applicable cable tie width 2.5mm
Applicable cable tie length 100mm
Applicable cable tie head L4.8 * W4.8 * H3.8mm
Bundle diameter 2mm - 16mm
Bundle forces 20N - 80N, adjustable
Bundle speed 0.8S/cable tie
Bundle productivity 1800-2400pcs/h, including the time of picking and placing products
Host machine L104*W64*H75cm
Cable tie gun None
Voltage AC220V, 50/60Hz
Pneumatic pressure 3kg/cm²


Advantages of automatic cable tie tool

1. High quality and durable: be made of metal and steel alloy.

2. Cut incision is smooth.

3. The tightening force and residual tail are set by adjusting screws. After setting, they would be stable.

Applications

1. Wire harness

2. Cable harness in PCBA

3. SFTP patch cable assembly

Trade terms

1. Sea port: Shenzhen, Guangzhou

2. Payment: 100% TT payment before ship.

3. Lead time: 10-15working days

4. Packing: wooden cases.

2400pcs/h 0.8S Automatic Cable Tie Tool For Nylon Zip Ties 0

FAQ

1. Does automatic zip tie machine use different cable ties?

No, it doesn’t. SWT25100D uses nylon cable ties T25100 only.

2. What warranty does the cable tie machine have?

1 year warranty and tech support forever.

3. Does the zip tie machine need air source?

Yes, it asks for 3kg/cm²
