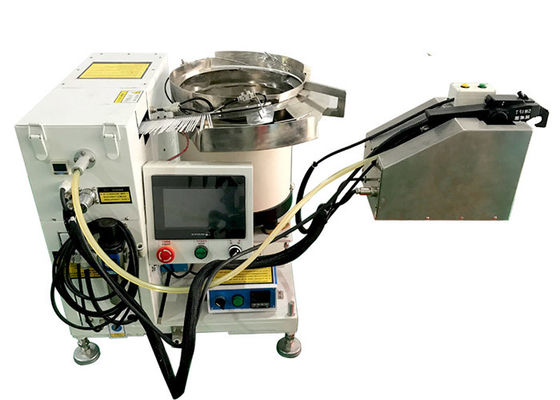

1800pcs/H Automatic Zip Tie Machine For Cable Harness Bundle

1800pcs/H Automatic Zip Tie Machine For Cable Harness Bundle

  • High Light

    1800pcs/h automatic zip tie machine


    2400pcs/h automatic zip tie machine


    1800pcs/h auto zip tie machine

  • Name
    Automatic Cable Tie Machine
  • Bundle Capacity
    1800 - 2400pcs/h
  • Cable Tie Spec
    T25100, W2.5 * L100mm
  • Max Bundle Dia.
  • Min Bundle Dia.
  • Operation Speed
    1S Per Cable Tie
  • Binding Forces
    20-80N Adjustable
  • Voltage
    AC220V, 50/60Hz, Euro Plug
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Wooden cases
  • Delivery Time
    12 - 15days
  • Payment Terms
  • Supply Ability

1800pcs/H Automatic Zip Tie Machine For Cable Harness Bundle

1800pcs/H Automatic Zip Tie Machine For Cable Harness Bundle


Automatic cable tie gun machine can tie lots of nylon cable ties in short time. One cable tie gun can save 2workers or even more.


Description of cable tie installation machine


1. This cable tie gun is designed for bundling motor coils or other special items with small room for going through zip ties.


2. Operator need to put nylon cable ties into the bowl feeder.


3. Bundle speed is 1.0S per cable tie.


4. Tension forces are adjustable. Handler can turn a knob in the tie gun to set the binding forces. The number is bigger, the force is stronger.


5. The waste of nylon cable ties would be collected into a box or a tin.


6. Handler treads the foot pedal, nylon cable ties would be transferred into the tie gun from the bowl feeder, then be wrapped, tightened and cut.


7. Automatic detect the failure, the machine would stop immediately if there is any malfunction, and automatic deal with the failed cable tie, and automatically restart the cable tie machine.


Information of automatic cable tie machine


Model SWT25100M
Cable tie gun Cable tie gun – Fixed type
Batteries included No
Batteries required No
Applicable cable ties model T25100
Applicable cable tie width 2.5mm
Applicable cable tie length 100mm
Applicable cable tie head L4.8 * W4.8 * H3.8mm
Bundle diameter 9mm -13mm
Bundle forces Up to 80N, adjustable
Bundle speed 1S/cable tie
Bundle productivity 1800-2400pcs/h, including the time of picking and placing products
Host machine L67*W66*H67cm
Cable tie gun L331*W282*H189mm
Voltage AC220V, 50/60Hz
Pneumatic pressure 5kg/cm²


Advantages of automatic cable tie machines


1. Using bulk cable ties, vibration feeding, transferred to the tool via hose.


2. PLC and touch panel controlling, easily to manage.


3. Be suitable for motor coil bundling which has been winded on stator core in advance,


1800pcs/H Automatic Zip Tie Machine For Cable Harness Bundle 0




1. Motor coils for vacuum cleaner


2. Small motor coils


3. Cable harness in motor coils


Trade terms


Sea port Shenzhen, Guangzhou, Huizhou
Payment 100% TT before ship
Lead time 10-15working days
Packing Wooden cases
Warranty 1 year and tech support forever


Packing details


Automatic cable tie machine would be packed in two wooden cases.


Item Packing size/wooden case N.W./kg G.W./kg
Vibration bowl for SWT25100M 60*53*70cm 55kg 71kg
Host machine, tie gun and others 72*70*85cm 85kg 110kg




1. What warranty does the cable tie machine cover?


1 year warranty and tech support forever.


2. Do you have a cable tie gun with battery?


No, we don’t have. The cable tie gun is worked with the host machine.


3. Do you have service center in other countries?


No, we don't have. If the cable tie machine has anything wrong, please take some videos to us and we would help you solve it. Now, there are clients who are from Turkey, Brazil, USA, Italy, Poland and England so on.
