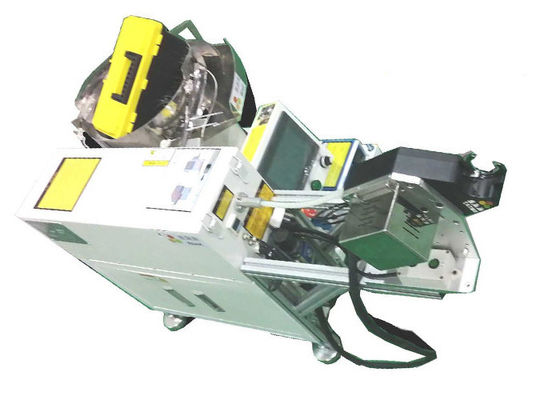

80N 0.7S Automatic Cable Tie Tool For Installing Nylon Tie Wraps

80N 0.7S Automatic Cable Tie Tool For Installing Nylon Tie Wraps



Worker could adjust different binding forces based on the bundle situations. It is very easy to do that.



Description of automatic cable tie equipment



1. Using loose cable ties, vibration bowl feeding, transferring to the tie gun via hose.



2. Handler treads the foot pedal, nylon cable ties would be packed automatically.



3. 20-80N binding forces adjustable



4. Bundle cycle time: 0.9S per cable tie



5. Bundle capacity: 1800 – 2400pcs/hour



6. Applicable nylon cable ties: T36100, width 3.6 * length 100mm.



7. The fixed cable tie gun can provide bigger tightening force than other methods. When manual tools or other type of machine could not tighten the harness with PVC sleeve or bags sealing, then this type of machine might be your better choice.



Information of automatic cable tie tool



Model	SWT36100F
Cable tie gun	Handheld cable tie gun
Batteries included	No
Batteries required	No
Applicable cable tie width	3.6mm
Applicable cable tie length	100mm
Applicable cable tie head	L6.1 * W5.9 * H4.6mm
Bundle diameter	ø3- ø 18mm
Bundle forces	20 - 80N adjustable
Bundle speed	0.9S/cable tie
Bundle productivity	1800-2400pcs/h, including the time of picking and placing products
Host machine	L89*W90*H79cm
Cable tie gun	L278*W240*H149mm
Voltage	AC220V, 50/60Hz
Pneumatic pressure	5kg/cm²



Advantages of automatic cable tie machines



1. The tie gun can be fixed in the table or other places and it is triggered by foot pedal. So hands are free. It is more convenient to bundle some special items.



2. The cable tie machine deals with loose cable ties in short time. It helps to improve the bundle efficiency.



3. It is easy to adjust the binding forces.





Applications



Applications

1. Wire harness, wire cable management

2. Sealed PE bags in food industry/medical industry

3. Copper tubes in air conditioning or refrigerators

4. Damping blocks bundled



Trade terms



Sea port	Shenzhen, Guangzhou
Payment	100% TT payment before ship
Lead time	10-15working days
Packing	Wooden cases
Warranty	1 year and tech support forever



Packing details



	Packing size	G.W./kg
Vibration bowl	79*67*70cm	90
Host machine and other parts	85*81*95cm	105



FAQ



1. Can I get free samples?



We can offer free nylon cable ties. Clients could let DHL/Fedex to pick them up from our factory. But we don’t offer free automatic bundle machines.



2. What is the lead time?



For automatic cable tie machines, 10-15working days



For nylon cable ties, it depends on your quantity.



3. Do you have a cable tie gun with battery?

No, we don’t have. All cable tie guns are connected to the host machine then can work.



4. Do you have service centers?



No, we don’t have. Our clients are from all over the world.
