| Brand Name: | Swift |
| Model Number: | SWT36100H |
| MOQ: | 1pcs |
| Price: | Negotiation |
| Delivery Time: | 15 working days |
| Payment Terms: | 100% T/T payment before ship |

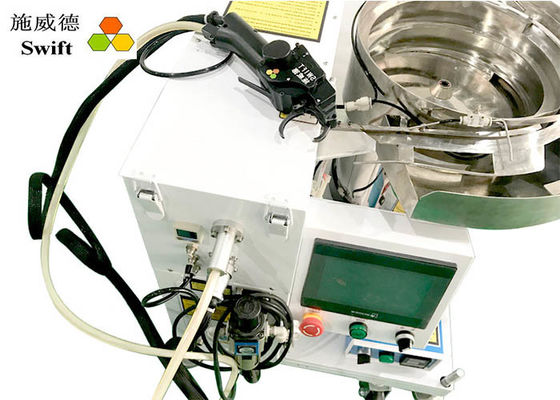

Quickly Tying Automatic Tie Gun 0.8S Wire Tie Tool
Save 2workers Fast Tying 0.8S Automatic Tie Gun For Wire Harness Management
Handheld cable tie gun could bundle cable tie in 0.8S. It is 2time faster than manual bundle.
Technical data of automatic cable bundle machine
| 1. Automatic cable tie machine | |
| Model | SWT36100H |
| Bundle speed | 0.8S per cable tie, including wrapping, tightening and cutting off. |
| Bundle productivity | 2400pcs including the time of picking and placing objects |
| Applicant cable ties | T36100 |
| Width of cable tie | 3.6mm |
| Length of cable tie | 100mm |
| Head size of cable ties | L6.1*W5.9*H4.6mm |
| Applicant bundle diameters for wire | Ø3mm – Ø18mm |
| Applicant bundle diameters for tubes | Ø3mm – Ø16mm |
| Machine size | L89 * W90 * H79cm |
| Voltage | AC220V, 50/60Hz, different plugs available |
| Pneumatic pressure | 5kg/cm² |
| 2. Trading information | |
| Seaport | Shenzhen, Shanghai |
| Lead time | 15 working days |
| Packing | Packed in wooden cases |
| Transport ways | By sea, DHL |
Features of cable tie bundle machine
1. Using nylon cable ties T36100 only.
2. When operator pulls the trigger in the tie gun, cable ties would be automatically wrapped, tightened and cut off.
3. The waste could be collected into a box or a tin.
4. Handheld tie gun is made of metal, not plastic. It could be used for long time.
5. The tie gun is light and comfortable to hold. Its weight is 0.86kg.
6. Operator can easily turn a knob to adjust binding forces.
7. The automatic cable bundle machine count quantity only after the operation succeeded.
8. PLC and touch screen: easy to manage specifications.
9. Voltage AC220V, 50/60Hz; Pneumatic pressure 5kg/cm²
Advantages of cable tie gun
1. Could be applied to full automation line.
2. Handheld tie gun could be as fixed cable tie gun if to add a support.
3. The cable tie gun can bundle some components with step feature.
4. Automatic detect the failure, the cable tie machine would stop immediately if there is any malfunction, and automatic deal with the failed cable tie, then restart.
Applications
1. Wire harness inside oven, fans, washing machines, air conditionings etc.
2. Cable harness in the board
3. PE bags
Packing details
| Host machine for SWT36100H | *1 |
| Handheld tie gun for SWT36100H | *1 |
| Vibration feeder for SWT36100H | *1 |
| Tool kit | *1 |
| English manual | *1 |
Automatic cable tie machine SWT36100H would be packed in two wooden cases.
FAQ
1. What warranty does automatic cable tie machine offer?
1 year warranty and tech support forever.
2. Does the tie gun work alone?
No, it must work with the host machine. And there is no tie gun with battery.
3. Do you provide design services?
We offer the design services related to nylon cable ties & tools, but there will be an additional charge.
Video
Video
Video
Video
Video
Video
|
