Cutter Clean Cuts Pneumatic 1S Cable Tie Tension Tool

Cutter Clean Cuts Pneumatic 1S Cable Tie Tension Tool

  • High Light

    Pneumatic Cable Tie Tightening Tool

    ,

    1S Nylon Tie Tensioning Tool

  • Machine Model
    SWT25100HC
  • Bundle Speed
    1.0S
  • Cable Ties Model
    C25100
  • Cable Ties Size
    W2.5mm * L100mm(cable Ties On Chain)
  • Max Banding Dia. For Wire
    Ø18mm
  • Min Banding Dia.
    Ø2mm
  • Pneumatic Pressure
    5kg/cm²
  • Voltage
    AC220V - AC240V, 50/60Hz
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Swift
  • Certification
    CE, RoHS, ISO9001: 2015
  • Model Number
    SWT25100HC
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden cases
  • Delivery Time
    12-15days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

Cutter Clean Cuts Pneumatic 1S Cable Tie Tension Tool

1S Bundle Speed Electric Pneumatic Automatic Cable Tie Tension Tool With Cutter Clean Cuts

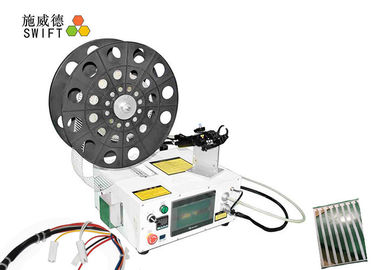

What is SWT25100HC automatic reel cable tie machine?

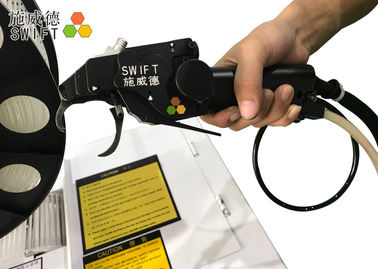

SWT25100HC is an automatic bundle machine that can automatically bundle reel cable ties. Reel cable ties are C25100 and their sizes are W2.5mm * L100mm. The bundled items’ total diameter is up to 18mm. The bundle speed is 1.0second. Once worker touch the trigger of handheld cable tie gun, cable tie would be transferred into the gun, wrapped and tightened cable tie, then cut off.



Technical data



Model SWT25100HC
Cable tie size W2.5 * L100mm(Nylon cable ties)
Cable tie on a reel 5,000pcs per reel
Bundle diameters range 2mm – 18mm
Bundle speed 0.8S
Tension forces(Adjustable) 0(2kg), 1(4kg), 2(6kg), 3(8kg)
Cable tie gun weight 0.86kg
Cable tie gun voltage DC24V(Auto switch)
Host machine voltage AC220V, 50/60Hz
Power 1,000W



Features



1. Without vibration bowl. It is small. And there are 5,000pcs cable ties in reel so operator doesn’t need to put nylon cable ties in host machine frequently.



2. The binding forces are adjustable.



3. Once touch trigger, the machine would start to bundle, tighten and cut off nylon cable ties.



4. These cable ties are made of nylon PA66, NOT stainless steel or other material.



Instructions



1. Put reel cable ties in host machine.



2. Connect handheld cable tie gun with host machine by using a feeding tube and a data cable.



3. Check “the position of loading material”.



4. Aim at the bundled items and pull the trigger to work.



5. If 5,000pcs cable ties can’t run out, please protect them from losing moisture to ensure optimum performance.



Cutter Clean Cuts Pneumatic 1S Cable Tie Tension Tool 0

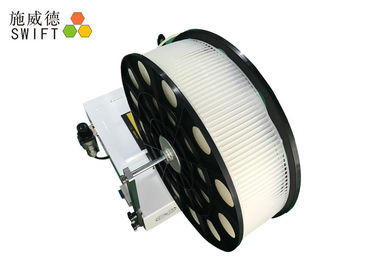

Related reel cable ties



Model C25100
Width 2.5mm
Length 100mm
Head size L*W*H 4.8 * 5.0 * 3.7mm
Cable tie thickness 1.1mm
Tensile strength 8kg
Pcs in reel 5,000pcs
Pcs in carton 10,000pcs

Cutter Clean Cuts Pneumatic 1S Cable Tie Tension Tool 1



Trade terms



Payment 100% TT payment before ship
Lead time 10-15days
Freight By sea(30 days); by DHL/FedEx(7days)
Package Wooden cases
Warranty 1 year and tech support forever
Certificate CE, RoHS



FAQ



1. How long is it from handheld cable tie gun to host machine?



It is 2.2m.



2. Can I use other brand reel cable ties?



No, you can’t and the machine SWT25100HC can only use Swift cable ties.



3. What certificates do you have?



We have CE, RoHS, REACH and ISO9001:2015.
