| Brand Name: | Swift |
| Model Number: | Automatic Cable Tie Tool |
| MOQ: | 1pcs |
| Price: | negotiation |
| Delivery Time: | 10-15days |
| Payment Terms: | T/T |
16mm Bundle Diameter Automatic Cable Tie Machine For Packing Nylon Zip Ties 0.8 Seconds

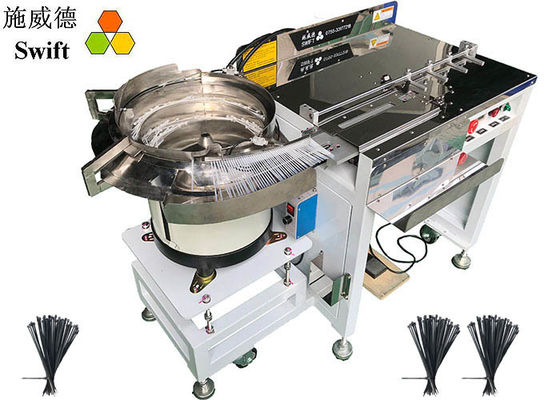

SWT25100D is a desktop automatic cable tie machine. There is no mobile cable tie gun. It is often used to bundle simple wire harness, cable or others.
Technique data
| Model | SWT25100D |
| Cable ties size | W2.5 * L100mm |
| Min bundle diameter | 2mm |
| Max bundle diameter for tube | 14mm |
| Max bundle diameter for wire | 16mm |
| Operation speed | 0.8S per setting |
| Host weight | 30kg |
| Power | 1,000W |
| Voltage | AC220V, single phase, 50/60Hz |
| Pneumatic pressure | 3kg/cm² |
Application
Be suitable for simple wire harness binding.
Features
1. Put loose cable ties into vibration bowl. Cable ties would be moved into the jaws.
2. 0.8Seconds finishing bundling, pull and tightening, cutting off.
3. The binding force is adjustable by turning a knob.
4. It can tighten harness with PVC sleeve, no need to pre-heating in advance.
5. Using cable ties T25100, W2.5 * L100mm.
6. The binding force is controlled by mechanical device. It is more accurate and stable.
7. Voltage: AC220V, 50/60Hz; pneumatic pressure: 3kg/cm²
Packing list
| Item | Qty |
| Host machine | *1 |
| Vibration bowl | *1 |
| A plastic box | *1 |
| English manual | *1 |
| Small tool case | *1 |
| Foot pedal | *1 |
Other cable tie guns
| Model | SWT25100H | SWT25100F |
| Cable ties size | W2.5 * L100mm | W2.5 * L100mm |
| Cable tie gun type | Handheld type | Fixed type |
| Bundle diameters range | 2mm – 18mm | 2mm – 18mm |
| Cable tie gun weight | 0.85kg | 4kg |
| Voltage | AC220V | AC220V |
| Pneumatic pressure | 5kg/cm² | 5kg/cm² |
| Certificates | CE, RoHS | CE, RoHS |
