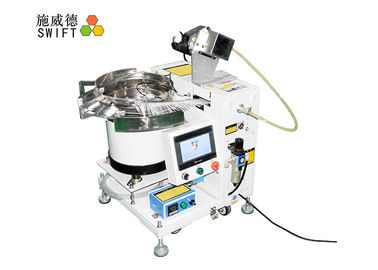

AC220V Electric Automatic cable tie packing machine for plastic tube fixed 0.9S
Using loose cable ties, vibrating feeding, transferring into fixed cable tie gun, bundling nylon zip ties in 0.9S per setting.
Technique data
| Model | SWT36100F |
| Cable ties size | W3.6 * L100mm(loose nylon cable ties) |
| Min bundle diameter | 2mm |
| Max bundle diameter for tube | 16mm |
| Max bundle diameter for wire | 17mm |
| Operation speed | 0.9S per setting |
| Bundle forces | 2kg-8kg |
| Fixed cable tie gun weight | 4.0kg |
| Host weight | 160kg |
| Power | 1,000W |
| Voltage | AC220V, single phase, 50/60Hz |
| Pneumatic pressure | 5kg/cm² |
Advantages
1. Bundle time: 0.9S per setting
2. Bundle diameters: 2mm – 17mm
3. Fixed cable tie gun weight: 4.0kg. The gun can be fixed in worktop and other positions.
4. Dealing with single cable tie and bundling it in fast speed. Cable ties size: W3.6*L100mm
5. Bundling, threading, tightening and cutting are done at the touch of a foot pedal.
6. The bundle forces are adjustable by turning a knob. Bigger numbers means bigger forces.
7. With PLC control system and touch screen.
8. Voltage: AC220, 50/60Hz; pneumatic pressure: 5kg/cm²

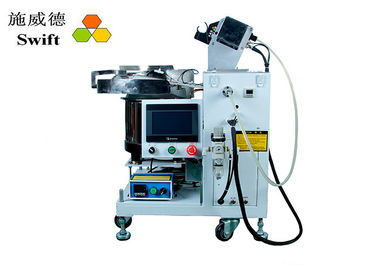

SWT36100F details
1. Vibration bowl: put loose cable ties here and they would be sorted.
2. Foot pedal: once treading pedal, cable tie would be bundled, thread, tightened and cut.
3. Feeding tube: cable ties would go through it and be reached the position of cable tie gun.
4. Data cable: connect handheld cable tie gun and host machine.
Package list
| Item | Qty |
| Vibration bowl | *1 |
| Host machine | *1 |
| Fixe cable tie gun | *1 |
| Feeding tube | *1 |
| A plastic box | *1 |
| An air tube | *1 |
| English manual | *1 |
| Small tool case | *1 |
| Foot pedal | *1 |
Packing information
| Item | Size | G.W./kg | N.W./kg |
| Host machine/wooden case | 76*71*84cm | 96 | 75 |
| Vibration bowl/wooden case | 70*56*63cm | 67 | 52 |
FAQ
1. Why do nylon cable ties jam on the vibration bowl?
Please check whether the interface between the vibration bowl and the machine is well connected. After reconnecting the interface, tighten the four small fixing screws of the vibration bowl, allow the vibration bowl to be full of nylon cable ties before starting work. In addition, many burrs or deformations of nylon cable ties can also cause jamming, and you need to pick out the bad cable ties.
2. Can I use T36100 and T25100 in one machine?
No, their width is different. The vibration bowl can deal with one kind of cable ties.
3. Can I adjust the binding forces?
Yes, pls turn a knob to adjust them. The max is 8kg.
