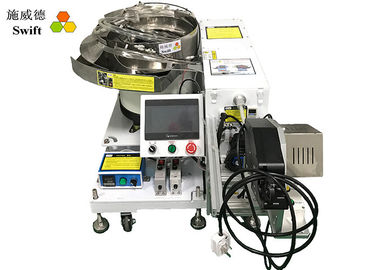

Hands Free Automatic Cable Tie Machine For Self Locking Plastic Ties Quickly 0.9S
Once treading the foot pedal, automatically feeding and bundling nylon cable ties.
Product features
1. With foot pedal. Once treading the pedal, automatically locking nylon cable ties, cutting off and collecting the waste material into a box.Hands free!
2. Put nylon cable ties(200pcs-300pcs per time) into vibration bowl, they would be automatically loaded and feed into the gun.
3. Turning a knob to adjuste binding forces. The max number is ”4” and it means 8kg.
4. The locking/cutting/collecting speed is 0.9S. One machine can save 2 workers.
5. The max bundle diameter is 22mm.
6. Voltage: AC220V, 50/60Hz, 1phase; Pneumatic pressure: 5kg/cm²
Technique data
| Model | SWT36100F |
| Voltage | AC220V, 50/60Hz |
| Pneumatic pressure | 5kg/cm² |
| Packing speed | 0.9S per cable tie |
| Packing object diameter | 2mm – 18mm |
| Packing forces | Adjustable |
| Packed nylon cable ties sizes | W3.6 * L100mm |
Packing machine introduction
1. Vibration bowl: Pls connect with the host machine. Turn on, choose 4 or 5.
2. The FIXED cable tie gun: treading the pedal, starting to lock, tighten and cut off cable ties.
3. The feeding tube: transfer cable ties into cable tie gun
Packing data
| Item | Packing size | N.W./kg | G.W./kg |
| Vibration bowl/wooden case | 67*55*63cm | 55kg | 79kg |
| Host machine/wooden case | 74*70*83cm | 64KG | 96kg |
Similar automatic cable tie machine
| Model | SWT25100F |
| Cable ties spec | W2.5 * L100mm |
| Bundle speed | 0.8S |
| Bundle diameters | 2mm - 18mm |
| Voltage | AC220V, 50/60Hz |
| Pneumatic pressure | 5kg/cm2 |
FAQ
1. Why cable ties are jammed in vibration bowl?
Put too much cable ties in here. Pls put 200-300pcs per time.
2. What certificates do you have?
CE, RoHS and ISO9001:2015.
