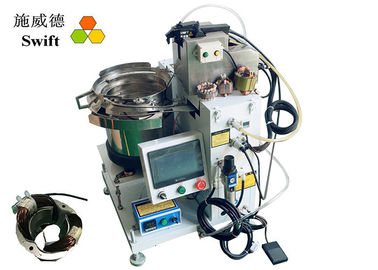

120mm nylon ties Fixed Type cable tie gun Automatic Bundle Machine For Coils
How does the machine work?
Put loose cable ties into the vibration bowl, then tread the foot pedal, the machine would start to bundle nylon cable ties.
Product specifications
Model | SWT25120M |
Cable tie size | W2.5 * L120mm |
Min banding Dia. | ø11 mm(Suggest) |
Max banding dia. | ø15 mm |
Operation speed | 1.2S /pcs cable tie |
Electrical power | Host: AC 220V 50/60 Hz |
Tool: DC 48V(automatic switching) | |
Pneumatic pressure | 5 Kg/ cm² |
Power | 1,000W |
Certificate | CE & RoHS |
Features:
1. The disordered bulk cable ties flow into random vibration plate, cable ties piped through to tips.
2. Tread the foot pedal, automatic feeding, tape, tightening, cutting, polishing wastes and all other actions;
3. 1.2seconds to complete all actions.
4. Touch Panel controlling, easily to manage, Chinese/English language

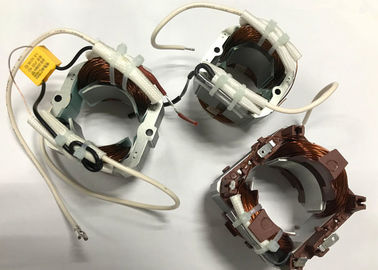

5. Be suitable for motor coil bundling which has been winded on stator core in advance, it is also suitable for bundling those objects which has small room for the cable tie to go through.
6. The machine voltage: AC220V, 50/60Hz; pneumatic pressure: 5kg/cm2
Operations
1 . Take 200 - 300pcs bulk cable ties into the vibration at random.
2 . Let the objects under the gun claw and tread the pedal. It will automatically bundle it.
3 . If the binding force is small, you can turn the knob to adjust it.
4 . If the machine has anything wrong, it will alarm. It can deal with it and restart. If it cann't, workers or engineers should check and solve it. If you are not the technical engineer, don't operate the "manual".
5 . No cable ties left in the vibration overnight. Or it is easy to make them deformed.
Advantages
1. Automatic detect the failure: deal with it and automatic restart the machine.
2.There has the function of detecting cable tie jam, then the machine would stop running and automatic clean the jammed cable tie, and restart automatically.
3. The waste material can be collected into a box.
Why choose Shenzhen Swift Automation technology CO., Ltd?
1. Our Prospect: To be the global leader in automatic nylon cable ties tools and cable ties
2. Our Mission: Provide top quality products. Provide customers with revolutionary improvement method.
3. Our Core Values: Innovation, Integrity, Pragmatic,Win-Win.
4. Our Management Policy: Customer Supreme, Credit First,Scientific innovation,Creating top-quality products.
Related products
Model | SWT36100M | SWT36120M |
Cable tie size | W3.6 * L100mm | W3.6 * L120mm |
Min banding Dia. | ø9 mm | ø11 mm |
Max banding dia. for wire | ø13 mm | ø15 mm |
Operation speed | 1.0s | 1.2s |
FAQ
1. How do you pack your auto cable tie tools or cable tie?
Auto cable tie tools are packed in export wooden cases.Nylon cable tie are packed in cartons.
2.Can your provide an auto cable tie tools us to test the quality?
No,we can't,but we can test samples in our factory.
3. Do you provide design services?
we offer the design services related to nylon cable ties & tools, but there will be an additional charge.
