Automatic Cable Tie Bundling Tool, A Cable Tying Machine for Self locking
Automatic cable tie bundle machine can automatically bundle nylon cable ties. It is a tool that can help many factories to improve the efficiency and save 2 or 3 workers.
Technical Parameters for automatic cable tie machine
Nylon cable tie specifications: 2.5X100 mm
Minimum bundle diameter ¢ 2.0 mm
Maximum bundle diameter for wire harness: ¢ 18 mm
Maximum bundle diameter for tube: ¢ 16 mm
Bundle speed: 0.7S / pcs
Power supply:
Host body: AC 220V 50/60 Hz
Hand Guns Gun: DC 24V (Auto Conversion)
Air pressure: 5 Kg / cm2
| Product name | Automatic cable tie machine |
| Tie Specifications | 2.5 * 100mm |
| Min bundle diameter | 2mm |
| Max bundle diameter for wire cable / tubes | 18mm / 16mm |
| Bundle speed | 0.7S/per cable ties |
| Power supply | AC 220V 50/60 Hz |
| Air pressure | 5 Kg / cm2 |
| Certificates | CE |
| Host machine size | 690 * 670 * 670mm |
 |
|
Cable Tie Gun Machine Features

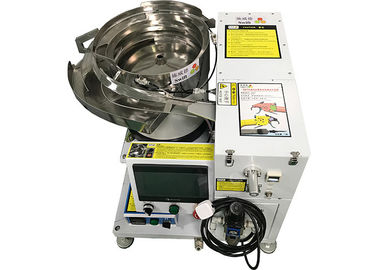

1. It will be disorderly loose material cable into the vibration plate, cable ties through the pipeline to the cable tie gun.
2. Pull the trigger, automatically complete the feeding, tape, tightening, cutting, throwing waste and all other actions;
3. 0.7 seconds to complete all operations. A machine can replace 7-8 workers.
4. The waste is automatically collected in the waste box (optional) through a special recycling system;
5. Host ontology comes with PLC control system, touch screen Chinese display, simple operation clear;

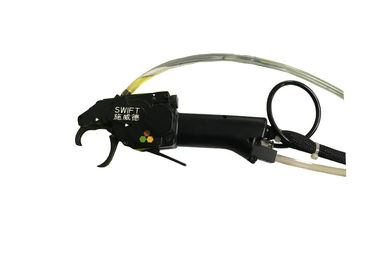

6. Hand-held tip light weight, grip design compact, easy to hold, long time will not feel tired;
7. Can be used with the robot in the automatic production line to achieve automatic cable ties, can also be fixed on the table as a desktop
Similar machines
| Model | Cable tie gun type | Using nylon cable ties type | Cable ties sizes | Cable ties model | Bundle object diameters |
| SWT25080H | Handheld | Loose cable ties | 2.5*80mm | T25080 | 2-14mm |
| SWT25120F | Fixed type | Loose cable ties | 2.5*120mm | T25120 | 2-23mm |
| SWT36150H | Handheld | Loose cable ties | 3.6*150mm | T36150 | 2-31mm |
Cable machine to use
Cable Tie Gun Machine Applicable to all kinds of wiring harness. Especially for aircraft, trains, ships, cars, communications equipment, home appliances and other large-scale mechanical and electrical equipment when the field assembly of the internal wiring bundle.
Also suitable for packaging or fixed items, gas-liquid transmission pipe joints fixed, food packaging, and bags of liquid packaging.
Packing details
The host machine: 1/wooden case;
The vibration bow: 1l/wooden case
