| Brand Name: | SWIFT |
| Model Number: | SWT25120H |
| MOQ: | 1pcs |
| Price: | Negotiation |
| Delivery Time: | 12 - 15days |
| Payment Terms: | T/T |
120mm Nylon zip Ties Self-locking Automatic Cable Tie Machine For Harness
Nylon cable ties are locked by the automatic cable tie machine. Save time, labor and improve the work efficiency.
Technical data
| Brand | SWIFT |
| Model | SWT25120H |

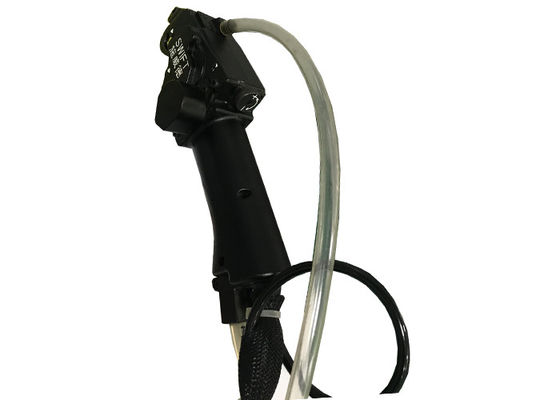

| Serials | Hand-held automatic cable tie guns |
| Functions | 1. Auto wrapping, tightening and cutting NYLON 66 ties. |
| 2. Auto collecting the waste material. | |
| 3. The binding forces are adjusted. | |
| 4. Be adapted to different diameters objects. | |
| Features | |
| 1. Max bundle diameter for wire: | 22mm |
| 2. Min bundle diameter for wire: | 2.0mm |
| 3. Operation speed: | 0.8 second every cable tie |
| 4. Using cable ties: | T25120, W2.5mm * L120mm, |
| Sizes and weight | |
| 1.Host size and weight | L725 * W710 * H670mm; 150kg |
| 2. Handheld cable tie gun size and weight | L256 * W108 * T66mm; 0.860kg |
| Electrical power | |
| 1. Host | AC220V – AC240V, 50/60Hz |
| 2. Handheld cable tie gun | DC24V (Auto switch) |
| Pneumatic pressure | 5kg/cm2 |
| Power | 1,000W |
Features
1. Use loose cable ties, put them in the vibration bowl and they would be transferred into the cable tie gun once operator pulls the trigger.
2. The waste material would be collected into a box through a transparent hose.
3. The binding force is adjustable.
4. Be suitable for tightening those components which has step features.
5. Could be fixed as desktop type; and could be applied to full automation line.
6. Ergonomic hand shank design, comfortable to hold and operate.
7. The operation speed is 0.8seconds.
8. The length of feeding tube is 2.2mm. The cable tie gun can be moved easily.
9. AC220V – AC240V, 50/60Hz
Touch screen
1. "Auto" key(mode): when machine is working, it is "Auto" mode.
2. "Start" key: Click "Start", the machine can start to work and bundle the products.
3. " Reset" key: When machine has something wrong and would alarm, Click "Reset", it would deal with the jammed cable tie and all actions of machine would be in the original positions. Pls click "Manual" before clicking "Reset",
RFQ
1. Is it tightly after binding?
Yes, it is. There are 5 binding forces to set. The max one is 8kgf.
2. Is it AC220V - AC240V?
The voltage is AC220V - AC240V, 50/60Hz.
3. Why to choose Swift automatic cable tie machine?
Our factory only devotes to automatic cable tie machines. Now, we have developed different models, such as SWT25080H, SWT251200F, SWT25100HC and others. Our clients are from Italy, Germany, Poland, UK, Turkey, USA and Brazil so on. Most of them have purchased the second or third machine already.
Video
Video
Video
Video
|
