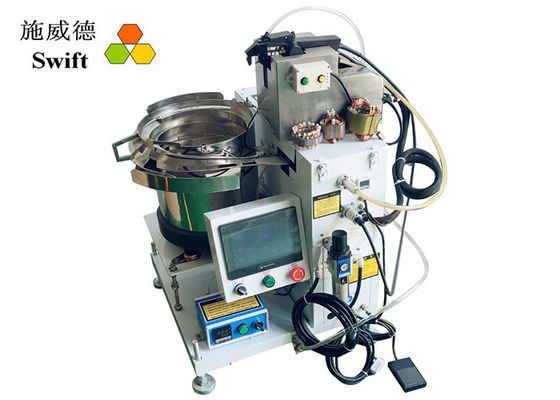

Fast Locking Automatic Nylon Cable Tie Machine For Tying Motor Coils Easily
Nylon cable ties are automatically bound by automatic cable tie machine. These nylon zip ties are general but with a good shape and stronger forces. SWT25100M uses W2.5mm * L100mm nylon plastic ties. It has a different cable tie gun that is used to bundle some special objects.
Features
1. Fast binding nylon zip ties automatically.
2. The machine would start to bundle, tighten nylon ties and cut them off once operator pushes the pedal.
3. One key to “Reset”. If the machine alarms, pls read the alarm message and press “Reset”, then the excess cable tie would be blown out and the machine would works again.
4. The binding forces are adjustable.
5. Be suitable for bundling motor coils or other objects that has small space for cable tie to go through.
6. The waste material would be collected into a box.
7. The voltage is AC220V, 50/60Hz.
Technical data
| Brand | SWIFT |
| Model | SWT25100M |
| Serials | Fixed automatic cable tie guns for Motor coil |
| Functions | 1. Auto bundling NYLON 66 plastic ties |
| 2. Auto collecting the waste material. | |
| 3. Auto detecting jammed and cleaned cable tie. | |
| 4. Auto adapting different sizes of object, less than the max bundle dia. | |
| Features | |
| 1. Max bundle diameter for wire: | 13mm |
| 2. Min bundle diameter for wire: | 9mm |
| 3. Operation speed: | 1second every cable tie |
| 4. Using cable ties: | T25100, W2.5mm * L100mm |
| Sizes and weight | |
| 1.Host size and weight | L690 * W670 * H670mm; 145kg |
| 2. Handheld cable tie gun size and weight | L331 * W282 * T189mm; 6kg |
| Electrical power | |
| 1. Host | AC220V – AC240V, 50/60Hz |
| 2. Handheld cable tie gun | DC24V (Auto switch) |
| Pneumatic pressure | 5kg/cm2 |
| Power | 1,000W |
Applications
Be suitable for tubes, cables, wire harness but more suitable for motor coils and some unique things.
Packing
Be packed in wooden cases.
Payment
1. EXW, FOB, CIF
2. 100% TT before shipment and delivery date 12-15days.
3. One year warranty and tech support forever.
FAQ
1. How to order?
Pls send us your purchase order by email or call us sales team, or we can make you proforma invoice under your request. We need to know the following information for your order before sending you PI.
1) Pls inform us what kinds of nylon ties you are using and what your product is. We need to know how your products are bound.
2) Send some testing videos to you if you send samples to our factory.
3) Delivery time required.
4) Shipping information and forwarder’s contact details.
2. Do you have stock?
Most of products are under regular production, we can make delivery immediately if we have the specific one in stock.
3. How about the warranty and service?
We provide the 1 year warranty and tech support forever. Before ordering, we would confirm which machine is suitable for your product so we would ask you some professional questions. If you could give us more details, it would be great.
4. Is it available to buy the small cable tie gun only?
The small cable tie gun must work together with the host machine. It is connected to the host through the data hose and feeding tube.
