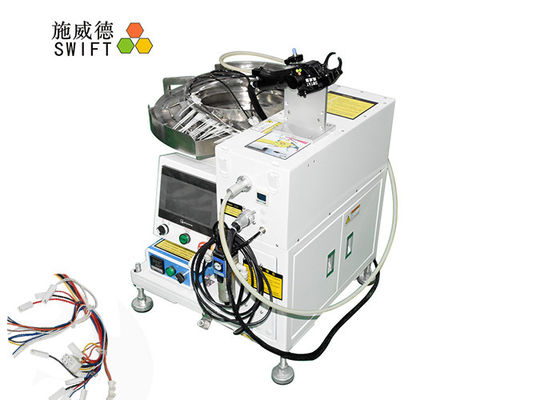

AC220V Handheld Automatic Cable Tie Bundle Machine For Oven Wire Harness

AC220V Handheld Automatic Cable Tie Bundle Machine For Oven Wire Harness
AC220V Handheld Automatic Cable Tie Bundle Machine For Oven Wire Harness
video play

Large Image :  AC220V Handheld Automatic Cable Tie Bundle Machine For Oven Wire Harness

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Swift
Certification: CE
Model Number: SWT25100H
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 100pcs/month
Detailed Product Description
Name: Automatic Cable Tie Bundle Machine Model: SWT25100H
Cable Ties Model: T25100, 1000pcs/bag Cable Tie Size: Width2.5 * Length100mm
Bindig Diameter: Ø2.0mm - Ø18.0mm Voltage: AC220V,50/60Hz, Plugs
High Light:

auto bundling machine

,

zip tie tensioner tools

AC220V Handheld Automatic Cable Tie Bundle Machine For Oven Wire Harness



Automatic bundle machine for nylon zip ties! Fast Automatic bundle, 0.7S every cable tie!



SWT25100H Specifications



Name Automatic cable tie machine/tool
Model SWT25100H
Application Automatic bundle nylon cable ties; Be suitable for wire harness in home appliance.
Cable ties type W2.5*L100mm, be made of nylon 66
Min bundle diameter 2mm
Max bundle dia. for wire 18mm
Max bundle dia. for tube 16mm
Host machine AC220V, 50/60Hz
Handheld cable tie gun DC24V
Power 1,000W
Pneumatic pressure 5kg/cm²



SWT25100H Features



1. Using nylon cable ties, width2.5mm and length100mm, loose nylon cable ties.



2. With a handheld cable tie gun. Easy to hold and operate.



3. Once push the trigger, the cable tie gun would start to bundle, tighten and cut nylon cable ties. All actions take 0.7S.



4. The rubbish would be collected into a box.



5. The bundled items diameters: Ø2mm - Ø18mm.



6. Binding forces can be adjusted by turning the knob.



7. SWT25100H is with a handheld cable tie gun. And It can be also used as a fixed cable tie gun. It needs some alloy supports and other extra parts to achieve this function.



8. It be applied to full automation line too.



Important detais



You could know the important details of specifications chart. Pls talk more the voltage and the pneumatic pressure.

The automatic cable tie machine voltage is AC220V – AC240V,50/60Hz.And it must use the air source.

Most factories have the air sources. It is no problem to use this machine in these factories.

The pneumatic pressure is 5kg/cm².When to use the tie wrap machine, it is suitable for 3 – 5kg/cm².

Before the machine is shipped, our engineer has set the specifications already.



Package



Be packed in wooden cases. The host machine and handheld cable tie gun will be packed in a wooden case. The vibration bowl will be backed in the wooden case.



Other products



Model SWT25080H SWT36150H
Cable tie gun type Handheld cable tie gun Handheld cable tie gun

Cable tie size
2.5 * 80mm 3.6 * 150mm

Min banding Dia.
ø2.0mm ø3mm

Max banding dia for wire/tube
ø18 / ø16mm ø31 / ø30mm
operation speed 0.7S 1.0S
Electrical power

Host : AC 220V 50 / 60 Hz


Gun : DC24V


Power:1000W

Pneumatic pressure 5 Kg / cm²



FAQ



1. Can I use other nylon cable ties in this machine?



No, you can't. One machine can only use one kind of nylon cable ties.



2. What is the warranty?



1 year warranty and tech support forever.



3. What should I do if the machine alarms?



The machine would stop working and would give tips in the home screen. So pls check the tips and deal with the problems. Or pls contact our team to help you.
