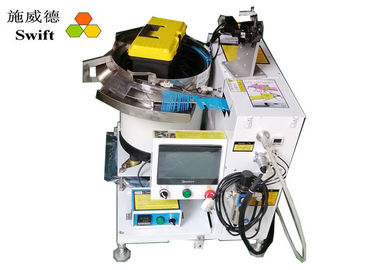

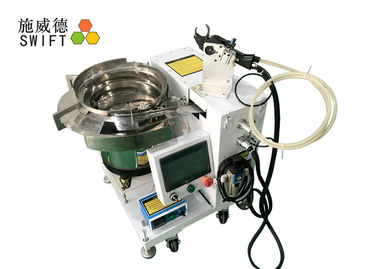

Quickly 0.7S Every Zip Tie Automatic Cable Tie Bundle Machine For Wire Harness Condensers

Quickly 0.7S Every Zip Tie Automatic Cable Tie Bundle Machine For Wire Harness Condensers



Bundle/Locking one cable tie within 0.7S. Pull the trigger, it would start to wrap, pull and tighten, cut nylon hose ties.



SWT25080H advantages



1. Using loose cable ties are width 2.5mm and length 80mm, 1000pcs per bag.



2. After bundling and cutting nylon cable ties, the rubbish is collected into a box.



3. There are 5 binding forces to choose.



4. The machine would alarm and stop working if have problem, and deal with it by its own.



5. Bundling speed is up to 0.7seconds per cable tie.



6. Touch screen: dual languages display; English/Chinese



7. Power supply AC220V, 50/60Hz.



8. The cable tie gun can adapt and bundle the objects with different diameters. You don't need to set each time.



SWT25080H parameters



Model	SWT25080H
Description	Automatic cable tie tool
Application	Automatically locking nylon cable ties
Cable tie spec	W2.5 * L80mm
Cable tie features	Straight without deformation, no tilt angle, tensile strength 14kg
Min bundle diameter	Ø2mm
Max binding diameter for wire	Ø14mm
Max binding diameter for tube	Ø13mm
The bundle speed	0.7S
Electric power	AC220V, 50/60Hz
Pneumatic pressure	0.5Mpa



Applications



Wire harness application; home appliance, such as oven wires, washing machine wires, air conditioner wires;



Packing details



Be packed in wooden cases. The handheld cable tie gun will be packed with the host machine.



Item	Packing size	G.W./kg	N.W./kg
The host machine	L73*W68*H85cm/wooden case	97kg	75kg
The vibration bowl	L53*W49*H51cm/wooden case	51kg	40kg



Trade terms



1. Lead time: 10 – 15working days.



2. Payment: 100% TT payment before ship.



3. Sea port: Shenzhen, Shanghai



Related automatic cable tie guns



Using nylon cable ties T25080, Width2.5mm * Length80mm, we have 4 kinds of different automatic cable tie machines. Pls see two types below.



Model	SWT25080F	SWT25080M
Cable tie gun	Fixed cable tie gun	Fixed cable tie gun for small space bundle
Gun weight	4kg	6kg
Using nylon cable ties	T25080	T25080
Bundle diameters	2mm - 10mm	5mm - 10mm
Bundle speed	0.7S	0.9S
Voltage	AC220V - AC240V
Pneumtatic pressure	0.5Mpa



FAQ



1. Is it ok to use other brand cable ties in this machine?



If you want to use other nylon cable ties, pls send some to our factory. We will check the shape, and test the force.



2. What is the warranty?



12months and tech support forever.



3. Where is your factory?



Our factory is located in Shenzhen, China, near Shenzhen Airport.



4. Is it easy to put the cable ties?



Yes, it is very easy. Operator just needs to put the cable ties into the vibration bowl at random. They will be lined and tidied.
