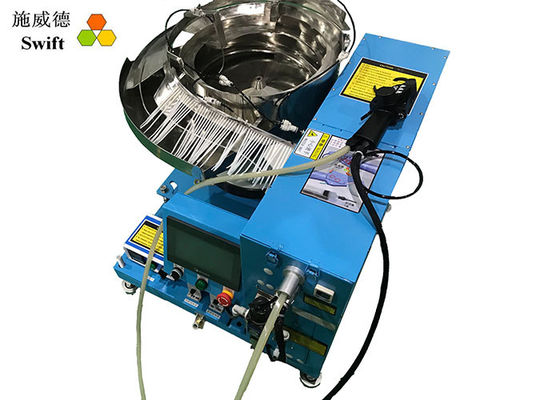

Electric AC220V Automatic Cable Tie Installation Tool Max Bundle Diameter 22mm
Automatic cable tie tool is electric tool. The power is AC220 – 240V, 50/60Hz. Operator holds the cable tie gun, once pull the trigger, the gun would automatically bundle items until the set binding force reaches.
Main features
1. The machine is designed, manufactured, assembled, and tested by Shenzhen Swift Automation Technology CO., Ltd in our factory by our engineers.
2. Items are put into the jaws, once pull the trigger, the jaws would automatically close. At the same time, cable tie would automatically bundle items and be cut off the end.
3. Touch screen, dual languages (Chinese and English) display.
4. You can set the total quantity of bundle cable ties, time in home screen.
5. You can set the heating temperature in the temperature control.
6. Cable tie gun weight is 0.86kg.
7. Cable tie gun can be a handheld type (Standard) or a fixing type (with a support). If customers need a support, please inform us by email.
8. Electric power is AC220 – 240V, 50/60Hz; Pneumatic pressure is 0.5mpa.
Automatic cable tie installation tool specifications
Product name | Automatic cable tie tool |
Model | SWT25120H |
Cable ties type | Loose cable ties |
Cable tie width | 2.5mm |
Cable tie length | 120mm/4.7inch |
Cable tie thickness | 1.1mm |
Tensile strength | 8kg |
Min bundle diameter | 2.0mm |
Max bundle diameter for wire/tube | 22mm/21mm |
Bundle speed | 0.8S |
Cable tie gun power | DC24V |
Power supply | AC220 – 240V, 50/60Hz; |
Pneumatic pressure | 0.5MPa |
Applications
Wire harness bundle
Assembly
Fastening
Packing
Machine dimensions
Width: 710mm
Length: 725mm
Height: 670mm
Weight: 150kg
Trade terms
Payment term: 100% TT payment before shipment. PayPal/Western Union is not available.
Lead time: 10 – 15 business days.
Shipment: by sea, by express
Price: Fob or EXW.
Warranty: 12months; Tech support forever.
FAQ
1. How to understand the machine model meaning?
E.g.: SWT25100H
SWT means our company name.
25100 means nylon cable ties specifications, cable tie width 2.5mm, length 100mm.
H means the handheld cable tie gun.
This machine uses loose cable ties.
E.g.: SWT25120F
SWT means our company name.
25120 means nylon cable ties specifications, cable tie width 2.5mm, length 120mm.
F means fixed cable tie gun that is fixed in the bench.
This machine uses loose cable ties.
E.g.: SWT36150HC
SWT means our company name.
36150 means nylon cable ties specifications, cable tie width 3.6mm, length 150mm.
H means the handheld cable tie gun.
C means the machine uses cable tie reel (4,000pcs per reel).
2. What is MOQ?
MOQ: 1pcs machine
MOQ: 100,000pcs cable ties
3. Where is the nearest sea port?
Shenzhen, China. Our factory also is near Shenzhen Airport.
