Electric AC110V Automatic Cable Tie System In Bundling Diameter Up To 42mm

Electric AC110V Automatic Cable Tie System In Bundling Diameter Up To 42mm

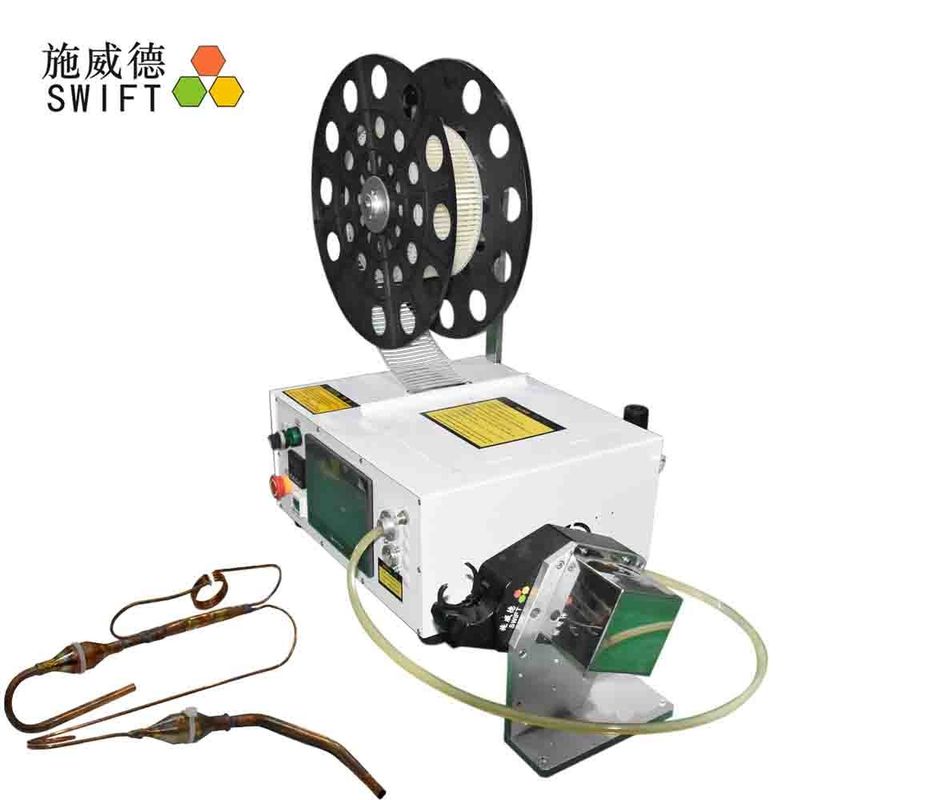

Automatic cable tie System, SWT36200FC could bundle items whose diameters are up to 42mm. It is the max bundling diameter for wires.



Automatic Cable Tie System diameters



1	Automatic cable tie system using cable ties reel – SWT36200FC

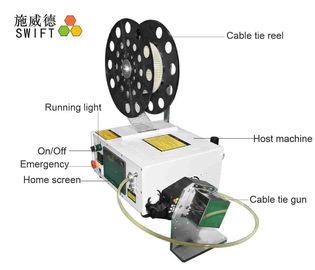

2	Description	1. Automatically wrap, pull and tighten cable ties, cut the excess zip ties off and collect them into a box. 2. Using cable ties reel. 3. With a fixing cable tie gun.
3	Cable tie type	Cable ties reel, C36200
4	Cable tie size	width	3.6mm
		Length	200mm
		Tie thick	1.2mm
5	Tensile strength		15kg/33.1LB
6	Bundling diameter		Ø15 – ø42mm
7	Operation speed		1.3S/one cable tie
8	Power supply		AC110, 50/60Hz(AC220V, 50/60Hz available)
9	Pneumatic pressure		5 Kg/cm²
10	Tension force		Adjustable
11	Cable ties material		Nylon PA66 certified UL,CE and RoHS.



Automatic Cable Tie System features



1. The machine is small and light weight( about N.W.: 35kg).



2. Using cable ties reel, 4,000pcs/reel.



3. Tread the pedal, the machine would start to wrap, perforate, pull and tighten cable tie, cut the excess zip tie off and collect them into a box.



4. The cable tie gun could be fixed in the place that you want.



5. With a touch screen, Weinview brand, it is easy to manage and operate it.



6. The machine would alarm if it detects error and deal with the problems by itself.



7. There is heating function.



8. Could be customized as a robot for a completely automation line.



9. The binding forces are adjustable.



Automatic Cable Tie System Applications



Internal wire harness assembly; wire bundles, the outgoing line of PCB/motor/lambs etc. ; food plastic bags, food labels etc.





Packing details



SWT36200FC Packing Details
Export wooden case		1pcs
Packing details	G.W./kg	58kg
	N.W./kg	39kg
	Packing Size/cm	L66 * W60 * H160cm
Total G.W.	58kg( estimated)



Trade terms



1. Payment term: 100%TT payment before ship.



2. Lead time: 10 – 15working days after receive the payment.



3. Warranty: 1 year warranty and tech support forever.



FAQ



1. Are you a factory?



Yes, our factory is located in Shenzhen, near the airport. And welcome to visit our factory.



2. What is MOQ?



MOQ : 1pcs.



3. Could you pls offer cable ties reel for free?



Yes, some would be offered to you for your check. The cable ties have passed Reach and RoHS. They are made of high quality nylon PA66 certified UL,CE and RoHS.



4. How many nylon cable ties are in a reel?



C25100, 5,000pcs in a reel ; C36200, 4,000pcs in a reel.
