Nylon Cable Tie Packing Machine Bundle Speed 0.7S AC220V 2mm - 14mm

Nylon Cable Tie Packing Machine Bundle Speed 0.7S AC220V 2mm - 14mm

  • High Light

    auto bundling machine

    ,

    zip tie tensioner tools

  • Bundle Speed
    0.7S
  • Cable Ties Size
    W2.5 * L80mm
  • Cable Ties Model
    T25080
  • Bundle Diameter
    2mm - 14mm
  • Voltage
    AC220V, 50/60Hz
  • Cable Tie Gun
    Handheld Type
  • Place of Origin
    China
  • Brand Name
    SWIFT
  • Certification
    CE
  • Model Number
    SWT25080H
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    Wooden cases
  • Delivery Time
    12 - 15days
  • Payment Terms
    T/T
  • Supply Ability
    100pcs/month

Nylon Cable Tie Packing Machine Bundle Speed 0.7S AC220V 2mm - 14mm

SWT25080H Automatic Nylon Cable Tie Packing Machine Bundle Speed 0.7S AC220V

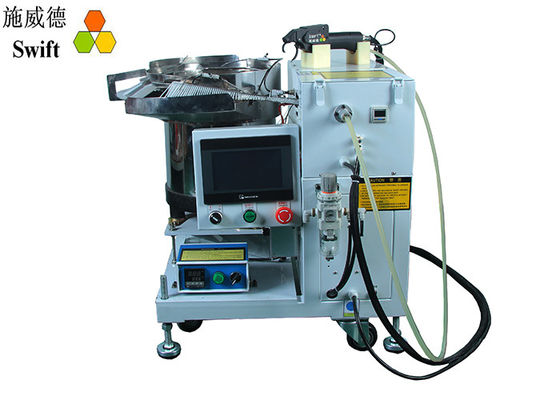

Automatic cable tie tool is a packing machine for nylon cable ties. SWT25080H bundle PCBA wire harness of kithchen appliance with nylon zip ties. The operation speed is fast, about 0.7S.



Specifications



Model SWT25080H
Cable ties size W2.5 * L80mm
Cable ties model T25080
Max binding diameter 14mm
Min binding diameter 2mm
Binding forces Adjustable
Binding speed 0.7S
Voltage AC220V, 50/60Hz
Pneumatic pressure 5kg/cm2



Features



1. Using nylon cable ties, W2.5 * L80mm. 1,000pcs/bag.



2. Handhled cable tie gun is small and easy to hold. The weight is 0.84kg.



3. Touch the trigger, the cable tie gun starts to wrap, pull and tighten, cut off nylon cable ties. The waste materials are collected into a box.



4. Auto detect jammed. If cable tie is jammed in the gun, it can detect and deal with jamme cable tie, then restart.



5. The binding forces are adjustable(2kgf, 3.5kgf, 5kgf, 6.5kgf,8kgf).



6. The cable tie gun can adapt to bundle diffetent diameters items. SWT25080H, the max bundle diameter is 14mm.



7. Voltage: AC220V, 50/60Hz, different pulgs.



Applications



Wire harness bundle



Packing details



Be packed in two wooden cases.



FAQ



1. How about the warranty?



We offer 1 year warranty and tech support forever.



2. Can I use other cable ties like W2.5 * L100mm in this machine SWT25080H?



No, you can not. SWT25080H uses nylon cable ties W2.5 * L80mm, T25080.
