| Brand Name: | Swift |
| Model Number: | SWT25100H |
| MOQ: | 1pcs |
| Price: | Negotiation |
| Delivery Time: | 12 - 15days |
| Payment Terms: | 100% T/T before ship |

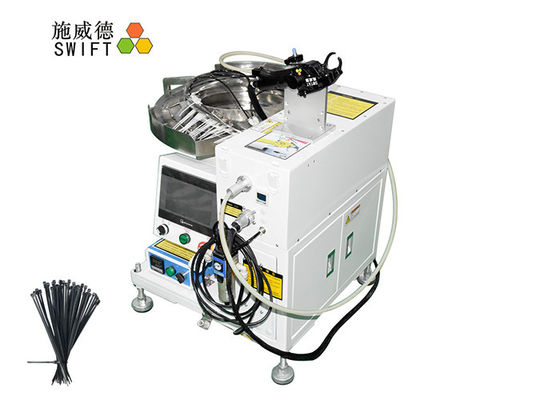

Automatic Nylon Cable Tie Machine With Handheld Cable Tie Gun SWT25100H
Automatically bundle items with nylon zip ties. Items' total diameters: 2mm - 18mm.
SWT25100H details
1. Using loose cable ties, T25100(W2.5 * L100mm).
2. Vibration sorting and feeding cable ties. They would be sent to the handheld cable tie gun.
3. Pulling the trigger, the cable tie gun starts to bundle items.
4. Items diameters: 2mm - 18mm.
5. Operation speed 0.7S.
6. PLC control system and touch screen.
7. Power supply: AC220V - AC240V, 50/60Hz;
8. Total pneumatic pressure: 5kg/cm²
SWT25100H technical data
| Model | Cable tie size | Qty in vibration bowl | Operation speed | Pneumatic pressure | Max Power | |
| SWT25100H | W2.5mm * L100mm | 200pcs – 300pcs | 0.7S | 5kg/cm² | 1,000W | |
| Power supply | AC220V, 50/60Hz ; Different plugs | |||||
Applications
Bundle wire harness, wire cable with nylon cable ties - Fast operation speed.
Packing details
Two export wooden cases as follows:
| SWT25100H automatic cable tie machine packing details | ||
| The host machine / wooden case | Weight/kg | 100kg |
| Packing Size/cm | L74 * W70 * H85cm | |
| The vibration bowl / wooden case | Weight/kg | 70kg |
| Packing Size/cm | L70 * W60 * H98cm | |
Trade terms
1. 100% TT payment before shipment.
2. EXW-price or others.
3. Delivery time: 12 – 15days
Our service
1. Tech support before/after sales and 1year warranty.
2. We can offer videos to let you know our machine easily.
3. If you have questions or interest on the machine, contact us now.
FAQ
1. What is the function of the machine?
It can automatically wrap,pull and tighten,cut off nylon cable ties in fast speed, about 0.7S.
It helps you to save time and labor cost.
2. Are you a factory?
Yes, we are. Our factory develops and produces automatic cable tie tools.
Video
Video
Video
Video
|
|
