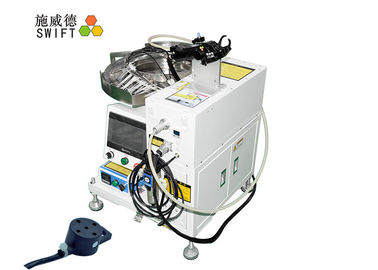

SWT25080H Automatic Cable Tie Tying Machine With Handheld Zip Tie Gun
SWT25080H has a handheld cable tie gun. It could automatically install cable ties in electric products, such as vacuum cleaners.
Product features
1. Automatic cable tie tying machine could sort loose cable ties T25080 and push them into the handheld cable tie gun through a tube.
2. One machine, one cable tie. That means SWT25080H only deals with nylon cable ties width2.5mm * length80mm.
3. The binding forces are adjusted. Just turn the knob in the cable tie gun.
4. The binding diameters: 2mm - 14mm.
5. The waste materials would be collected into a box.
6. The operation speed : 0.7S.
7. Voltage: AC220V, 50/60Hz
Product specifications
| SWT25080H automatic cable tie tying machine | |||||
| Cable ties size | W2.5 * L80mm | Voltage | AC220V,50/60Hz | ||
| Operation speed | 0.7S / cable tie | The gun V. | DC24V(auto switch) | ||
| Max banding Dia. for wire | Ø14 mm | Power | 1,000W | ||
| Max banding Dia. for tube | Ø13 mm | Pneumatic pressure | 5kg / cm² | ||
| Min banding Dia. | Ø2 mm | Certificate | CE, RoHS | ||
| The bending force | 5 forces | Certificates | CE, RoHS, REACH | ||
Application
Wire harness of vacuum cleaners
Wiring harness of ovens
Wire cable of elevators
Wire harness of washing machines
The host machine and the vibration bowl were being packed.
