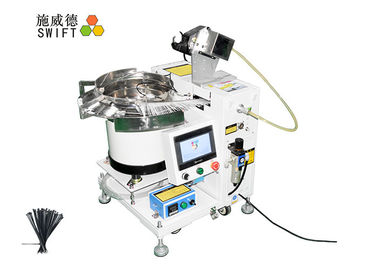

SWT25100F Automatic Nylon Cable Tie Machine For Packing Plastic Ties Quickly
Automatic cable tie tools for packing plastic ties : automatically warp, pull and tighten cable ties once tread foot pedal.
Features
1. With a fixed cable tie gun. Two hands free.
2. With foot pedal, once tread it, the cable tie gun and the host machine would start to work.
3. Use bulk cable ties, it is better to put about 300pcs on the bowl every time.
4. The cable tie gun could be fixed in the bench or near assembly line. We offer the fixtures if you want to customize.
5. Stronger binding forces : be suitable for the hose, plastic tubes, water tubes.
6. PLC control and touch screen.
7. Turn the knob to adjust the binding forces.
8. With 4 wheels and 4 foot cups.
Base data
| Name | SWT25100F |
| Features and advantages |
1. Use loose cable ties T25100.
2. The binding force could be adjusted easily.
3. 1S bundle one cable tie. |
| Cable ties | T25100 bulk cable ties |
| Cable ties material | PA 66 certified by UL, RoHS |
| Cable ties width | 2.5mm |
| Cable ties length | 100mm |
| Bundling Max Dia. for wire | Ø18.0mm |
| Bundling Max Dia. for tube | Ø16.0mm |
| Bundling speed | 1.0S/cable tie |
| Cable tie gun power | DC48V, automatic transfer |
| Cable tie gun size | L278* W240 * T149mm; weight 4kg |
| Power supply | AC220V, 50/60Hz; plugs available |
| Pneumatic pressure | 5kg/cm² |
| Max power | 1,000W |
| Certificate | CE |
Applications
1. Plastic tubes
2. Wire harness with sleeve
Packing details
Be packed in two wooden cases.
Trade terms
| Payment ways | 100%TT available |
| Lead time | General 10days after receive payment. |
| Ship ways | By sea, general 35days. |
| By air, general 3days | |
| By express, general 6days | |
| Price | FOB, EXW and others |
| After sales service | 12months warranty and tech support through Skype, videos, or email. |
