| Brand Name: | SWIFT |
| Model Number: | SWT25100D |
| MOQ: | 1pcs |
| Price: | Negotiation |
| Delivery Time: | 10days |
| Payment Terms: | T/T |

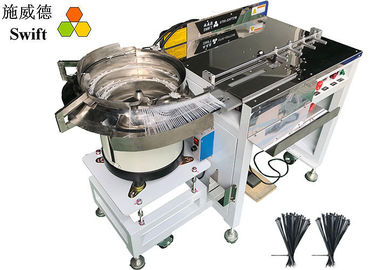

SWT25100D Desktop Automatic Cable Tie Machine For Nylon Zip Ties
Automatic cable tie machine - desktop type.
SWT25100D Features:
1. Using loose cable ties 2.5 * 100mm
2. Pull the trigger, automatic feeding, tape, tightening, cutting, polishing wastes and all other actions;
3. Operation speed: 0.8S
4. The binding force can be adjusted by PE engineer.
5. Start to bundle cable/objects once tread foot pedal.
6. With a ruler.
SWT25100D parameters
| SWT25100D automatic cable tying machine | |||||
| Model | Cable tie size | Binding Dia. | Operation speed | Pneumatic pressure | Voltage |
| SWT25100D | W2.5 * L100mm | 2 - 16mm | 0.8S | 3kg/cm² | AC220V |
Applications
Simple wires/cable bundling, harness with PVC sleeve
Ruler function
The ruler is option. Our factory general offer a 4cm ruler. It would be assembled in the machine.
When operator use the machine, he could use it to measure and bundle items in a correct place.
Video
Video
Video
|
|
