Reliable Zip Tie Machine , Automatic Wire Tie Machine For Wire Harness Connectors

Reliable Zip Tie Machine , Automatic Wire Tie Machine For Wire Harness Connectors

  • High Light

    bundle tying machine

    ,

    cable tying machine

  • Product Name
    Automatic Wire Tie Tool
  • Application
    Bundling Simple Wires
  • Model
    SWT25080D
  • Cable Tie Width
    2.5mm
  • Cable Tie Length
    80mm
  • Bundling Dia.
    2mm - 12mm
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Swift
  • Certification
    CE and RoHS
  • Model Number
    SWT25080D
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden case
  • Delivery Time
    10 - 15days
  • Payment Terms
    100% T/T payment
  • Supply Ability
    100 - 300pcs/month

Reliable Zip Tie Machine , Automatic Wire Tie Machine For Wire Harness Connectors

SWT25080D 80mm Length Cable Tie Plastic Tie Machine For Wire Harness Connectors



The plastic tie machine SWT25080D uses cable ties (W2.5 * L80mm) to bundle wire connectors automatically.

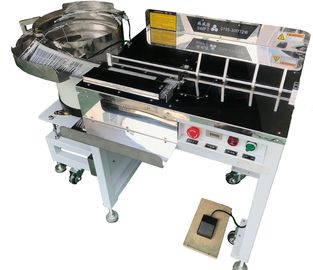

SWT25080D details



1. The machine looks like a desk.



2. The vibration bowl is connected near the working table. The gap distance between the vibration bowl and the table is about 1mm.



3. With wheels. It is easy to move anywhere.



4. With foot pedal. Once tread the pedal, the machine would start to bundle.



5. With a ruler bar. It can be used to measure the length of wires.



SWT25080D technical parameters



SWT25080D automatic cable tie cutting machine
Model Cable tie size Qty in vibration bowl Binding Dia. Operation speed Pneumatic pressure Max Power
SWT25080D Width 2.5mm 300pcs 2 - 12mm 0.8S 3kg/cm² 1,000W
Length 80mm
Tie thick 1.1mm
Tensile strength 8kg
Machine size L104 * W64 * H75cm; Weight: 120kg
Power supply AC220V, 50/60Hz ; AC110V, 50/60Hz



SWT25080D advantages



1. Use bulk cable ties, and the vibration feeding, automatically move cable ties to the position of jaws.



2. Taking 0.8s to thread and tighten cable ties, cut off them automatically.



3. The binding force can be adjusted by PE engineer turning the knob.



4. The binding force keeps same forever once setting.



Applications



Be suitable for simple cable binding, other simple wires for power



Company service



1. Tech support and quotation.

If you have any problems or doubts about our automatic cable tie machine, please don’t hesitate to contact our sales team.



2. 1 year warranty.

We guarantee that free parts will be offered during warranty. If you find the machine get wrong, pls let engineer to deal with it. It is better if you could offer some videos then we can offer you solutions.



3. Quality control.

Our factory certified to ISO 9001: 2015 quality management system and produces. We control our products quality in strict according to this standard. All products are CE certified and have passed the Reach & RoHS test.



FAQ



FAQ about SWT25080D
Questions Answers
Q1. What is the payment term? A1. 100% TT payment before production/ship.
Q2. Where is the waste material? A2. Cable ties would fall down to ground directly after cutting off. Please use a box to collect them.
Q3. Does the machine have a tool gun? A3. No, it has a tool jaws. The tool gun is used to the handheld type automatic zip tie tool, like SWT25100H.
Q4. What is the delivery time? A4. Normally 10days.
