Fast Cutting 1.3S Automatic Wire Tie Tool 0.5Mpa 80N Adjustable

Fast Cutting 1.3S Automatic Wire Tie Tool 0.5Mpa 80N Adjustable

  • High Light

    1.3S automatic wire tie tool

    ,

    0.5Mpa Automatic Wire Tie Tool

    ,

    80N Automatic Wire Tie Tool

  • Product Name
    Plastic Cable Tie Machine
  • Bundle Forces
    20N - 80N Adjustable
  • Bundle Capacity
    1800-2400pcs/h
  • Bundling Diameters
    20mm - 42mm
  • Applicant Cable Ties
    C36200, W3.6 * L200mm
  • Bundling Speed
    1.3S
  • Voltage
    AC220V, 50/60Hz, Euro Plug
  • Pneumatic Pressure
    0.5Mpa
  • Place of Origin
    China
  • Brand Name
    Swift
  • Certification
    CE and RoHS
  • Model Number
    SWT36200HC
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    Wooden cases
  • Payment Terms
    100%TT
  • Supply Ability
    100pcs/month

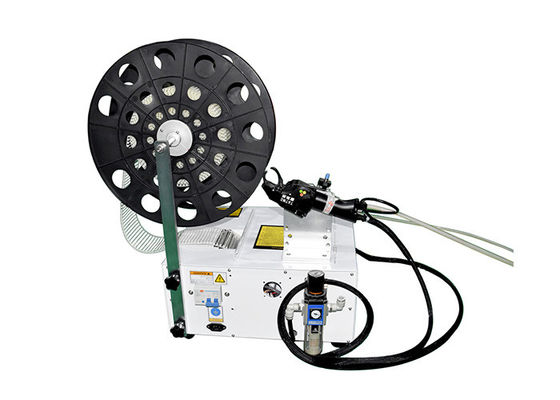

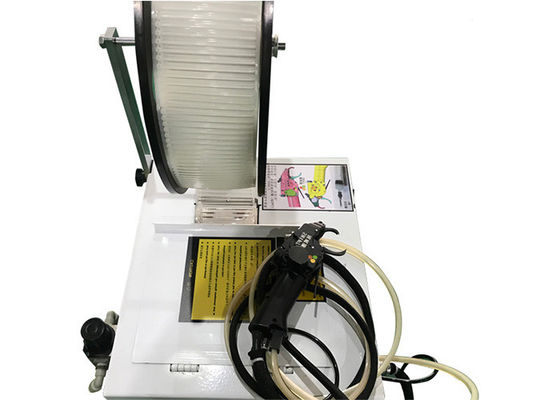

Fast Cutting 1.3S Automatic Wire Tie Tool 0.5Mpa 80N Adjustable

Cutting Fast 1.3S Automatic Wire Tie Tool 0.5Mpa 80N Adjustable



There are 4,000pcs cable ties in a reel. After running out of them, please load it again. Automatic cable tie installation machine SWT36200HC does have to load nylon cable ties often.



Description of cable tie installation machine



1. Without vibration feeder, automatic cable tie machine is smaller. And the noise is lower.



2. The waste of nylon tie wraps would be collected into a box.



3. When operator pulls the trigger, nylon cable tie would be wrapped, pulled and tightened, cut in 1.3 seconds.



4. There are different tension forces to choose, from 20N to 80N.



5. Ergonomic hand shank design: it is comfortable to hold and operate.



6. If there is any cable tie jammed in the tool or in the hose, the machine would stop running and automatically clean the jammed cable tie, and then restart automatically.



7. Automatic cable tie gun machine could be fixed as desktop type and could be applied to full automation line.



Information of automatic cable tie machine



Model SWT36200HC
Cable tie gun Cable tie gun – handheld type
Batteries included No
Batteries required No
Applicable cable tie model C36200
Applicable cable tie width 3.6mm
Applicable cable tie length 200mm
Applicable cable tie head L6.7 * W6.6 * H4.6mm
Bundle diameter 20mm - 42mm
Bundle forces 20N - 80N, adjustable
Bundle speed 1.3S per cable tie
Bundle productivity 1800pcs/h, including the time of picking and placing products
Host machine L71*W47*H23cm
Cable tie gun L274*W73*H74mm
Voltage AC220V, 50/60Hz
Pneumatic pressure 5kg/cm²



Advantages of automatic cable tie gun tool



1. Automatic cable tie gun can tie quantities of nylon zip ties in short time. One tie gun can save 2 workers.



2. Handler can easily get the tension forces by turning a knob in the tie gun.



3. Cut incision is smooth, without sharp edge.



Fast Cutting 1.3S Automatic Wire Tie Tool 0.5Mpa 80N Adjustable 0



Applications



1. Cable harness inside white goods.



2. Sealed bags in food industry or medical industry.



3. Military industry: nitronit/bulk emulsion explosive packing and fixing.



Trade terms



Sea port Shenzhen, Guangzhou, Shanghai
Payment 100% TT before ship
Lead time 15 working days
Packing Wooden cases
Warranty 1 year and tech support forever



Packing details



Automatic cable tie machine is packed in wooden case.



Packing list



Host machine *1
Cable tie gun handheld type *1
Tool kit *1
English manual *1



Packing size: 95*58*90cm, G.W.: 70kg; N.W.: 60kg



FAQ



1. Can I adjust the binding forces?



Yes, you can.



2. Why are some cable ties jammed in the tie gun?



Cable ties are deformed that would cause cable ties jammed. But swift cable ties are not.



3. How large the object can be tied by using this machine?



SWT36200HC can deal with objects whose diameter up to 42mm. It is the max bundle diameter.



4. Does this cable tie machine use other brand cable ties?



The nylon cable tie machine of SWT36200HC uses C36200, reel cable ties.
