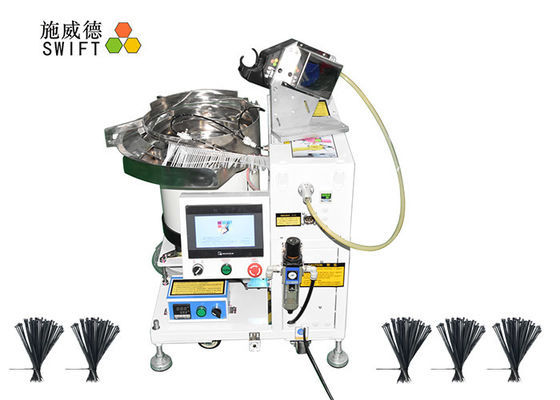

SWT25100F Automatic Cable Tie Tool Machine For A Stator Winding Fast Bundle
Automatic cable tie tool for stator winding. SWT25100F is a fixed cable tie gun.
1. Loose cable ties: Width 2.5 * Length 100mm, Cable ties model: T36100.
2. When to tread foot pedal, cable ties would be sent to the gun and are bundled automatically.
3. The bundle speed is 0.9S, including the bundling, threading and tightening, cutting off cable ties.
4. The binding force is adjusted by turning knob.
5. With wheels. It is easy to move.
6. Power supply: AC220, 50/60Hz.
7. Pneumatic pressure: 5kg/cm².
8. Certificate: CE, RoHS.
SWT25100F base data
|Features and advantages||
1. Loose cable ties T25100;
2. Tread foot pedal then start to bundle.
3. It takes 0.9S to thread, pull and tighten, cut off cable ties.
4. The binding force is adjustable.
5. The waste material could be collected into a box.
6. The tool gun is fixed in the bench.
|Tool gun size||L27 * W24 * H14cm; N.W.: 4kg|
|Host machine size||L69* W67 * H67cm|
|Cable ties||T25100, loose cable ties|
|Material||Nylon 66 certified by UL, RoHS etc.|
|Bundling Max Dia. for wire||Ø18.0mm|
|Bundling Max Dia. for tube||Ø16.0mm|
|Bundling Max Dia.||Ø2.0mm|
|Cycle time / Bundling speed||0.9S|
|Tool head power||DC48V (auto switch)|
|Power supply||AC220V, 50/60Hz; Euro plug|
How to adjust the tension force?
The fixed cable tie gun has a knob. Pls turn it to adjust the tension forces.
There are four tension forces.
|1. Payment term: 70% TT payment before production; 30% payment before ship.|
|2. Price: EXW, Fob Shenzhen, CIF and so on.|
|3. Shipment ways: by sea, by air, or by express|
|4. Sea port: Shenzhen|
1. We are online 24hours. If you have any questions, pls contact us anytime.
2. We have a professional team and will meet your requires.
3. SWIFT backs up its products with an efficient, cost effective after sales service, including free telephone support and quick response times.
4. We provide 12months warranty and tech support forever.
Be packed in wooden cases.
