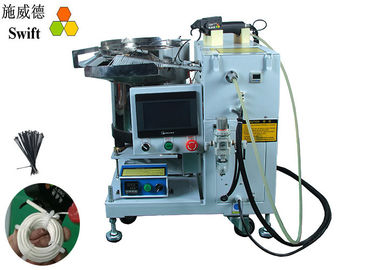

Automatic Cable Tie Tool For Wire Cable Zip Tie Gun Machine CE RoHS Certificates
Automatic cable tie tool for wire cable assembly line.
SWT25120H advantages
1. Using loose cable ties, width 2.5mm, length 120mm.
2. Pull the trigger to the gun head, automatic bundling, threading and tightening, cutting off.
3. All actions can be done in 0.8seconds.
4. The binding forces are adjustable.
5. With collecting waste materials system. The waste is collected into a box.
6. With a handheld cable tie gun. It is more flexible.
7. With temperature control system. It could improve the toughness of nylon cable ties under 15degree C.
8. Voltage: AC220V, 50/60Hz; Pneumatic pressure: 5kg/cm²
Automatic cable tie tool SWT25120F specifications
| Model | SWT25120H | ||
| Cable tie type | Loose NYLON zip ties | ||
| Cable tie size | width | mm | 2.5 |
| inch | 0.1＂ | ||
| Length | mm | 120 | |
| inch | 4.72＂ | ||
| Tie thick | mm | 1.2 | |
| inch | 0.05＂ | ||
| Tensile strength | IBS | 18 | |
| KG | 8 | ||
| Bundling diameter | mm | Ø2 –ø22 | |
| Operation speed | seconds | 0.8 | |
| The host machine size | cm | L69 * W67* H67 | |
| The gun head size | cm | L28 * W24 * H15 | |
| Power supply | V | AC220V, 50 / 60Hz | |
| Pneumatic pressure | Kg/cm² | 5 | |
How to use automatic cable tie tool?
Put some nylon cable ties into the vibration bowl, touch the trigger, the cable tie gun starts to bundle, wrap, pull and tighten, cut off nylon cable ties.
Remark.
1. Every time put 200pcs zip ties into the bowl. It would not feed well if too many.
2. For the beginner, loosening the trigger after count 3second. It is as a training.
Applications
| Applications | Bundle objects with cable ties. |
| Wire harness industry | Wiring harness inside white goods, simple harness |
| Metal parts | AC component, copper pipe, condenser pipes of air conditions, fridge etc. |
| Food industry | Bags, peanut oil bottles, bottles, crab claws fixed, the labels. |
| Auto industry | Vitta, fuel lines, rubber hose, oil pipe, hose |
