SWT25120M Automatic Cable Tie Tool Motor Stators Bundle Nylon Plastic Ties
Automatic cable tie tool SWT25120M automatically bundle motor stator/coils with nylon zip ties.
Automatic cable tie tool specifications
| Model | SWT25120M |
| Cable ties model | T25120 |
| Cable tie size | W2.5 * L120mm |
| Cable ties material | Nylon 6.6 |
| Min banding Dia. | ø11 mm |
| Max banding dia. | ø15 mm |
| Operation speed | 1.2s/cable tie |
| Electrical power | Host: AC 220V, 50/60 Hz, different plugs |
| Tool: DC 24V(automatic switching) | |
| Pneumatic pressure | 5 Kg/ cm² |
| Power | 1KW |
| Weight | Host:146 kg ( With 4 wheels, move easily ) |
| Gun: 6kg | |
| Size | Host: L690 * 670 * 670mm |
| Gun: L331 * W282 * H189mm | |
| Certificate | CE & RoHS |
Features
1. Use bulk cable ties, vibration feeding, transferred to the Tool via hose.
2. Once tread the pedal, automatically Wrapping, Perforating, Pulling & Tightening, Cut off, Collecting the waste material into waste tank.
3. The whole operation takes only 1.2s.
4. Different waste material collecting methods for choice.
5. PLC + Touch Panel, Chinese and English display, easy to manage and operate.
6. Be suitable for motor coil bundling which has been winded on stator core in advance, it is also suitable for bundling those objects which has small room for the cable tie to go through.
7. Automatic detect the failure, the machine would stop immediately if there is any malfunction, and automatic deal with the failed cable tie, and automatic restart the machine.
8. The binding forces are adjusted by turning a knob.
How to operate automatic cable tie tool?
1 . Take 200 - 300pcs bulk cable ties into the vibration at random.
2 . Let the motor coil under the gun claw and tread the pedal. It will automatically bundle it.
3 . No cable ties left in the vibration overnight. Or it is easy to make them deformed.
4 . If you are not the technical engineer, don't operate the "manual".
5 . If the binding force is small, you can turn the knob to adjust it.
Why choose Shenzhen Swift Automation technology CO.,Ltd?
We are a professional manufacturer of automatic cable tie system and offer you professional ideas.
The machine is our patent product!
We have strong R & D team to improve the quality and service.
Related products
| Model | SWT25100M | SWT36100M | SWT36120M |
| Cable tie size | W2.5 * 100mm | W3.6 * L100mm | W3.6 * L120mm |
| Min banding Dia. | ø9 mm | ø9 mm | ø11 mm |
| Max banding dia. for wire | ø13 mm | ø13 mm | ø15 mm |
| Operation speed | 1.0s | 1.0s | 1.2s |
How does the machine work?

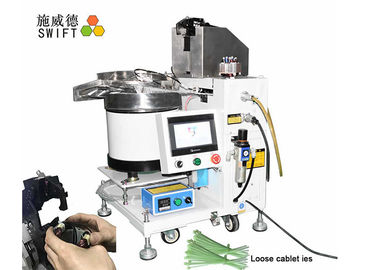

The machine consists of the host machine, the vibration bowl and the gun. The bowl is set on the host. The gun is connected to the host by the feeding hose and the data hose.
When power on, touch the 'AUTO', tread the pedal, it will automatically bundle the motor coil. You spend about 1.2S to bind one.
