SWT25080H Nylon Zip Tie Tensioner Tools 80mm Diameter For Wires / Cables

SWT25080H Nylon Zip Tie Tensioner Tools 80mm Diameter For Wires / Cables

  • High Light

    automatic cable tie machine

    ,

    auto bundling machine

  • Name
    Automatic Cable Tie Tool System
  • Model
    SWT25080H
  • Cable Ties Model
    W2.5 * L80mm (loose Nylon Cable Ties)
  • Bundle Items Diameter
    2mm - 14mm
  • Bundle Speed
    0.7S/cable Tie
  • Voltage
    AC220V,50/60Hz, Different Plugs
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SWIFT
  • Certification
    CE, RoHS
  • Model Number
    SWT25080H
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden cases
  • Delivery Time
    10 - 15days
  • Payment Terms
    T/T available
  • Supply Ability
    100pcs/month

SWT25080H Nylon Zip Tie Tensioner Tools 80mm Diameter For Wires / Cables

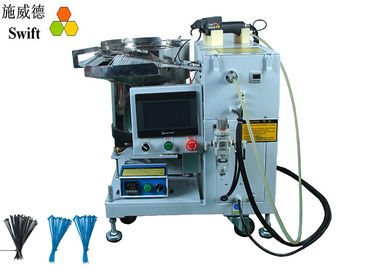

Automatic Cable Tie Tool System For Wires And Cables SWT25080H Nylon Zip Ties 80mm



Automatic cable tie tool system - Wire harness bundle with nylon zip ties(Loose).



Automatic cable tie tool advantages



1. Using loose cable ties, vibration feeding, transferred into the cable tie gun via hose.



2. Pulling the trigger, automatically bundle, thread, pull and tighten, cut cable ties off.



3. The waste materails could be colletced into a box.



4. Automatically detect if it is successful to bundle the cable tie. Or it would stop and deal with the failed cable tie.



5. Be comfortable to hold and operate the gun head.



6. The binding forces are adjustable.



7. Voltage: AC220V, 50/60Hz.



Automatic cable tie tool technical data.



Name Automatic cable tie tool Model SWT25080H
Using type Handheld cable tie gun Advantages Bundle nylon zip ties fast
Cable ties model T25080 Bundle items diameters 2mm - 10mm
Cable tie width 2.5mm Bundle speed 0.7S/cable tie
Cable tie length 80mm Pneumatic pressure 5 kg / cm²
Cable ties material Nylon 6.6 Voltages AC220V, 50/60Hz



Applications



Rail transportation sector



Electrical installation



Food industry



Wiring harness

SWT25080H Nylon Zip Tie Tensioner Tools 80mm Diameter For Wires / Cables 0



Package



The machine would be packaged in wooden cases. One for the machine, the other one is for the vibration bowl.



Our service



1. We offer 1 year warranty and tech support forever.



2. We offer online guide on guiding you operate the machine. In China mainland, we can go to your factory and install the machine for you.
