Automatic Motor Coil Assembly Cable Tie Tool Bundle Speed 1.0S AC220V 50/60Hz

Automatic Motor Coil Assembly Cable Tie Tool Bundle Speed 1.0S AC220V 50/60Hz

  • High Light

    automatic cable tie machine

    ,

    auto bundling machine

  • Name
    Automatic Cable Tie Tool
  • Application
    Bundle Motor Coil With Nylon Cablet Ies In Assemly
  • Model
    SWT25100M
  • Cable Ties Model
    T25100
  • Cable Ties
    W2.5 * L100mm ( Loose Package)
  • Temperature For Cable Ties
    Standard, -30℃ - +80℃;
  • Bindind Diameter
    9mm - 13mm
  • Power Supply
    AC220V, 50/60Hz, Different Plugs
  • Place of Origin
    Shenzhen, China
  • Brand Name
    Swift
  • Certification
    CE, RoHS
  • Model Number
    SWT25100M
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiation
  • Packaging Details
    wooden case
  • Delivery Time
    10 - 15days
  • Payment Terms
    T/T payment
  • Supply Ability
    100pcs/month

Automatic Motor Coil Assembly Cable Tie Tool Bundle Speed 1.0S AC220V 50/60Hz

Automatic Zip Tie Tool For Motor Coil Assembly Cable Tie Tool Bundle Speed 1.0S



This machine is used to bundle motor coils specailly. It helps to improving the bundle speed and is suitable for production assembly.



Automatic cable tie tool features



1. Using loose nylon cable ties only, T25100, width 2.5mm, length 100mm.



2. Auto bundle, thread, pull and tighten, cut cable ties off.



3. It can bundle motor stator in different angles. Bundle one cable tie taking 1.0S.



4.  The bundle forces are adjustable.



5. PLC, Touch panel controlling, it is easy to operate.



6. With temperature controlling system, it helps to protect cable ties toughness when under 15℃.



7. Auto detect cable tie jammed and deal with the problem by its own.



Automatic zip tie tool parameters

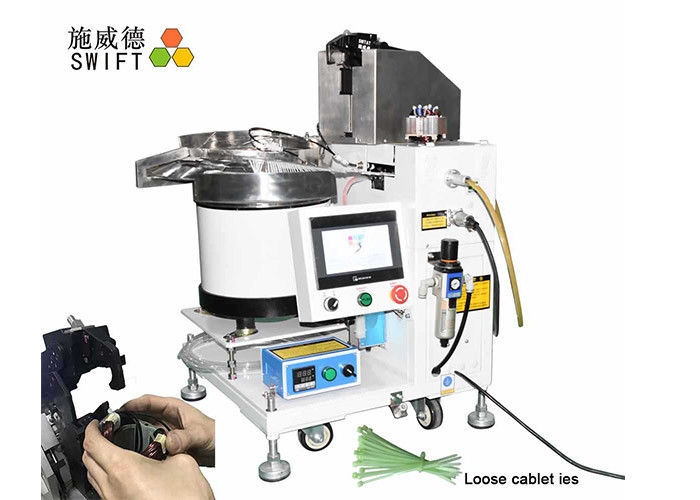

The host machine for SWT25100M:

The host machine for SWT25100M
Model SWT25100M
M M means motor coil or motor stator
Host size Length 69cm
Width 67cm
Height 67cm
Host weight 145kg
Host power supply AC220V, 50 Hz / 60Hz
Power 1,000W
Pneumatic pressure 5kg / cm²

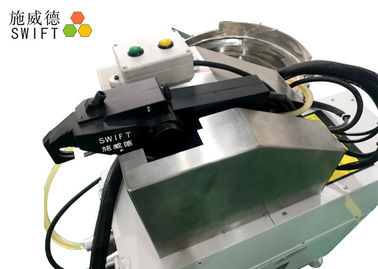

Cable tie gun of SWT SWT25100M:

Cable tie gun of SWT SWT25100M
Using cable tie Width 2.5mm * Length 100mm (loose cable ties)
Cable tie model T25100
Bundling Max Dia. for wire Ø 13mm
Bundling Min Dia. Ø 9mm
Gun tool size L33 * W28 * H19cm
Gun weight 6.0kg
Gun tool power supply DC24V ( switch auto )



How to operate automatic cable tie tool for motor coil?



1 . Pick the motor coil up and place it into the under jaws of cable tie gun.



2 . Push the pedal by foot, it would automatically bind it with cable ties.



Note. New user should be trained and read English manual carefully.



Packing details



Packing details of SWT25100M cable tie machine for motor coil
The host machine / wooden case Weight/kg 155kg
Packing Size/cm L80 * W70 * H70cm
The vibration bowl / wooden case Weight/kg 59kg
Packing Size/cm L60* W50 * H85cm
Total G.W. 212kg( estimated)



Company advantages



1. SWIFT is a professional team who could help you to improve the efficiency of bundling.
2. We are a factory with more than 6years history.
3. We have a strong R & D department. We have professional engineers with rich experience.
4. Cable tie machine using loose cable ties is patented product.



Trade terms



1. 70% deposit before production and 30% balance payment before ship.



2. Delivery date: 10 -15 days



3. Shipment ways: by sea, normally 30 -45days.



4. Sea port: Shenzhen, Shanghai or others.



5. By Express, DHL  etc.
