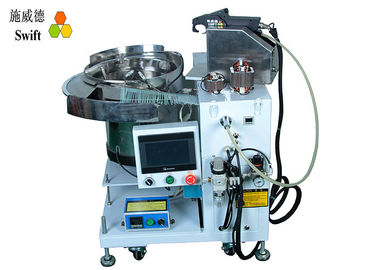

Automatic Cable Tie Tool For Motor Coil Connection Quickly Bundle Forces Adjustable
Automatic cable tie tool for motor coil is manufactured by Swift automation technology company. The tool can bundle 4 nylon cable ties or more in the motor coil.
How does the machine work?
The vibration bowl sorts nylon cable ties one by one. Then plastic ties would be transferred into the cable tie gun. When power on, tread the pedal, auto cable tie gun automatically binds motor coils with nylon zip ties.
Auto cable tie gun for motor coil connection specifications
| Model | SWT25120M |
| Cable tie size | W2.5 * L120mm( different colors available) |
| Min banding Dia. | ø11 mm |
| Max banding dia. for wire | ø15 mm |
| Bundle speed | 1.2S /pcs cable tie |
| Electrical power | Host: AC 220V 50/60 Hz |
| Tool: DC 24V(automatic switching) | |
| Pneumatic pressure | 5 Kg/ cm² |
| Power | 1kw |
| Weight | Host:146 kg ( With 4 wheels) |
| Gun: 6kg | |
| Size | Host: L69 * 67 * 67cm |
| Gun: L33 * W28 * H18cm | |
| Certificate | CE, RoHS |
Features
1. Deal with loose zip ties, vibration feeding, transferred to auto cable tie gun via hose.
2. Tread the pedal, automatically Wrapping, Perforating, Pulling & Tightening zip ties, Cutting them off and collecting waste material into a tank.
3. The whole operation takes only 1.2s, one machine can save 1-2 operators. Different waste material collecting methods for choice.
4. PLC + Touch Panel controlling, easily to manage.
5. Be suitable for motor coil bundling which has been winded on stator core in advance, it is also suitable for bundling those objects which has small room for the cable tie to go through.
Operations
1 . Take 200 - 300pcs bulk cable ties into the vibration at random.
2 . Let the motor coil under the gun claw and tread the pedal. It will automatically bundle it.
3. If the binding force is small, you can turn the knob to adjust it.
Advantages
1. Be suitable for motor coil bundling which has been winded on stator core in advance, it is also suitable for bundling those objects which has small room for the cable tie to go through.
2. Automatic detect the failure that means the machine would stop immediately if there is any malfunction, and automatic deal with the failed cable tie, and automatic restart the machine.
3.There has the function of detecting cable tie jam, if there is any cable tie jam in the Tool or in the hose, the machine would stop running and automatic clean the jammed cable tie, and then restart automatically.
Related products
| Model | SWT25080M | SWT25100M | SWT36120M |
| Cable tie size | W2.5 * 80mm | W2.5 * L100mm | W3.6 * L120mm |
| Min banding Dia. | ø5 mm | ø9 mm | ø11 mm |
| Max banding dia. for wire | ø10mm | ø13 mm | ø15 mm |
| Operation speed | 0.9s | 1.0s | 1.2s |
