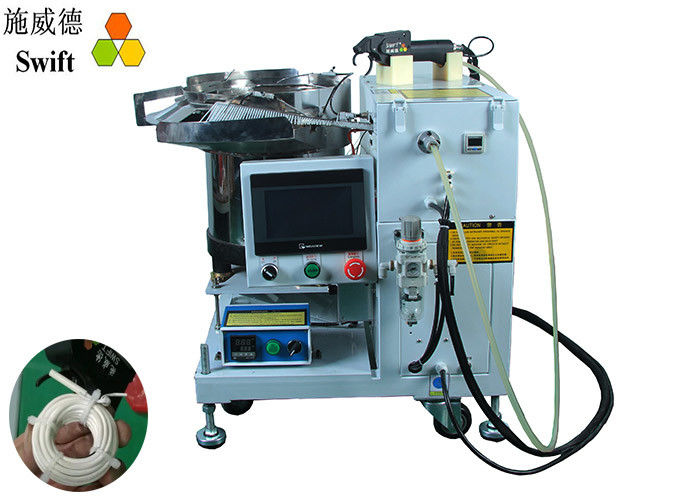

Electric Automatic Cable Tie System For Aluminum Bar And Ropelights Binding Forces
Automatic cable tie system used loose nylon cable ties to bundle aluminum bar and ropelight tightly. Operator can hold the cable tie gun to bundle the bar and cable together.
SWT36150H advantages
1. Dealint with loose cable ties, 3.6 * 150mm.
2. Once pull gun trigger, automatically wrap, pull and tighten cable ties, cut them off and collect the excess tails into a box.
3. 5 binding forces available.
4. With temperature control system. This system can protect cable ties toughness when in winter or under 15 degree C.
5. Bundling speed is up to 1 cable tie per second.
6. Touch screen: English/Chinese display
SWT36150H parameters
| Model | SWT36150H |
| Description | Automatic cable tie tool |
| Application | Automatically binding objects with cable ties - tightly and quickly. |
| Cable tie spec | W3.6 * L150mm(Loose nylon cable ties) |
| Cable tie features | Straight without deformation, no tilt angle, tensile strength 14kg |
| Min bundle diameter | Ø3mm |
| Max bundle diameter for wire | Ø31mm |
| Max bundle diameter for tube | Ø30mm |
| The bundle speed | 1.0S |
| Electric power | AC220V, 50/60Hz |
| Pneumatic pressure | 0.5Mpa |
Applications
Automatic Cable Tie Machine is widely used in electronics, toys, gifts, agriculture, food industry, on the binding amount big factory is favored, and thoroughly solves the tie to the low efficiency problem.
Trade terms
1. Lead time: 10 – 15working days.
2. Payment: 100% TT payment before ship.
3. Price: EXW,FOB
4. Sea port: Shenzhen, Shanghai
FAQ
| FAQ | |
| Questions | Answers |
| 1. What is MOQ? | 1. MOQ: 1pcs machine |
| 2. Is it ok to use other brand cable ties in this machine? | 2. It would cause some problems. If use other cable ties, it is better to customize one. |
| 3. What is the warranty? | 3. 12months and tech support forever. |
| 4. What does the meaning of SWT36150H? | 4. SWT means Swift. 36150 means nylon cable teis Width 3.6mm and Length 150mm. H means handheld automatic cable tie gun. |
