SWT25100H Automatic Cable Tie Gun Machine For Wire Harness Tying, Cable Tie Tool
Cable Tie Gun Machine Technical Parameters
Tie Specifications: 2.5X100 mm
Minimum bundle diameter ¢ 2.0 mm
Maximum bundle diameter for wire: ¢ 18 mm
Maximum bundle diameter for tube: ¢ 16 mm
Bundle efficiency: 0.7 / pcs
Power supply:
Host body: AC 220V 50/60 Hz
Hand Guns Gun: DC 24V (Auto Conversion)
Air pressure: 5 Kg / cm2

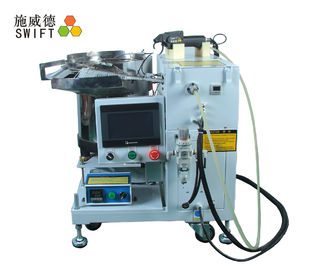

Host machine size: L 690 X W 670 X H 670 mm (machine can be placed below the pipeline)
The total weight: 140 kg (with casters, easy to move)

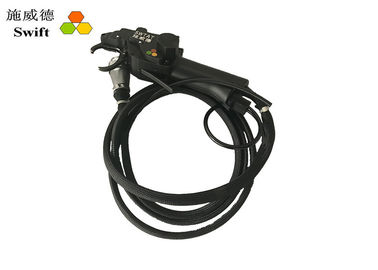

Hand held gun size: 250X 102 X 64 mm
Hand cable tie gun: 0.85kg
| Product name | Automatic cable tie gun machine |
| Tie Specifications | 2.5 * 100mm |
| Min bundle diameter | 2mm |
| Max bundle diameter for wires/tubes | 18mm/16mm |
| Bundle speed | 0.7S/per cable ties |
| Power supply | AC 220V 50/60 Hz |
| Air pressure | 5 Kg / cm2 |
| Certificates | CE |
Cable Tie Gun Machine Features
1. It will be disorderly loose material cable into the vibration plate, cable ties through the pipeline to the cable tie gun.
2. Pull the trigger, automatically complete the feeding, tape, tightening, cutting, throwing waste and all other actions;
3. 0.7 seconds to complete the feeding, tape, tightening, cutting, throwing waste and all other actions, including auxiliary time, the entire cycle of about 1.3 seconds. A machine can replace 7-8 workers.
4. The waste is automatically collected in the waste box (optional) through a special recycling system;
5. Hand-held tip light weight, grip design compact, easy to hold, long time will not feel tired;
6. Binding strength or elasticity can be adjusted by knob;
7. Host ontology comes with PLC control system, touch screen Chinese display, simple operation clear;
8. Can be used with the robot in the automatic production line to achieve automatic cable ties, can also be fixed on the table as a desktop
Other automatic cable tie tools
| Model | Cable tie gun type | Using nylon cable ties type | Cable ties sizes | Cable ties model | Bundle object diameters |
| SWT25080H | Handheld | Loose cable ties | 2.5*80mm | T25080 | 2-14mm |
| SWT25120F | Fixed type | Loose cable ties | 2.5*120mm | T25120 | 2-23mm |
| SWT36150H | Handheld | Loose cable ties | 3.6*150mm | T36150 | 2-31mm |
| SWT25100HC | Handheld | Reel cable ties | 2.5*100mm | T25100 | 3-18mm |
Voltage: AC20-240V, 50/60Hz
Pneumatic pressure: 5kg/cm²
Cable machine to use
Cable Tie Gun Machine Applicable to all kinds of wiring harness. Especially for aircraft, trains, ships, cars, communications equipment, home appliances and other large-scale mechanical and electrical equipment when the field assembly of the internal wiring bundle.
Also suitable for packaging or fixed items, gas-liquid transmission pipe joints fixed, food packaging, and bags of liquid packaging.
Packing details
The host machine/wooden case;
The vibration bowl/wooden case
Our products are sold all over the world, you can rest assured.
