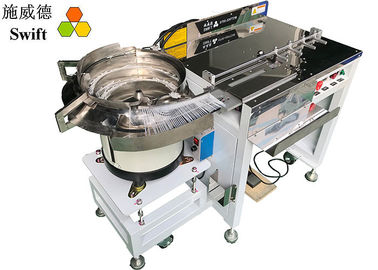

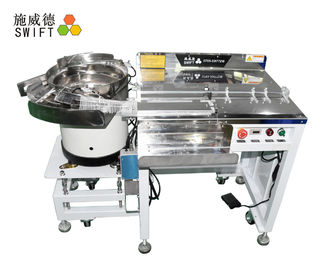

Desktop Type Automatic Cable Tie Tool For Small Wiring Harness Binding
Introduction of Automatic Cable Tie Tool
Smart design, one key control. There is no the gun head but it aslo can achieve the cable tie binding and cutting off. It counts the cable ties that are bound successfully in the goods, except the fail ones.
Automatic Cable Tie Toolfeatures
1 . You can put the nylon cable ties into the vibration directly and the vibration will sort them automatically.
2 . No gun head. Easy bundle the goods.
3 . Worker can sit down in the front of the machine and operate it easily. There are 4 keys in the right side.
Automatic Cable Tie Tool Technique Parameter
| Electrical power | AC220V 50/60Hz | Pneumatic pressure | 3kg/cm2 | |
| Power: 1000W | ||||
| Size | L1040 * W640 * H750mm | Weight | 120kg | |
| Model | Cable tie spec. | Min binding Dia. | Max binding Dia. for wire | Max binding Dia. for tube |
| SWT25080D | W2.5 * L80mm | Ø2mm | Ø12mm | Ø10mm |
| SWT25100D | W2.5 * L100mm | Ø2mm | Ø16mm | Ø14mm |
| Key introduction as bellow | ||||
| 1. Power on/off : after install and test the vibration bowl, power on. | ||||
| 2. Counter : counts the qty of sucessful binding cable ties | ||||
| 3. Alarm : it will alarm if there is any problem or the set qty achieves | ||||
| 4. Emergency switch : pls push the button in the emergency situation to protect the machine | ||||
Automatic Cable Tie Tool Application
Small wiring harness binding, harness with PVC sleeve and so on.
Not suitable for the assemble line very well.
