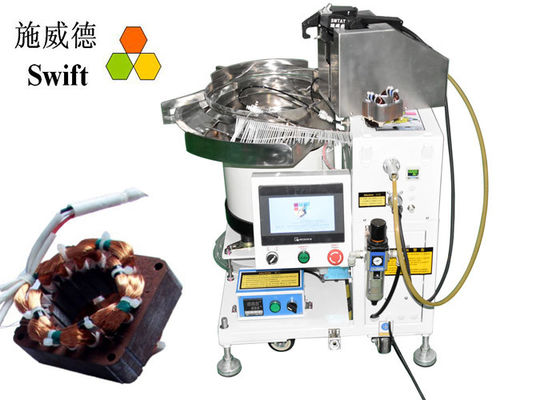

High Bundle Speed Automatic Cable Tie Tool With PLC Control And Touch Panel
Stop bundling wires/motor coil with cable ties by hands! It is too slowly. The machine could automatically bundle them quickly, 1S to bundle one cable tie. And it keeps the neat end after cut tie off.
Features
1. Be able to bundle large amounts of loose cable ties.
2. Bundle speed is up to 1S per cable tie. It could be faster if you need and please inform us.
3. PLC control and touch panel, Chinese and English display.
4. It is easy to turn up/down the binding force because there is a knob in the tool head.
5. Auto detect the fail. The machine would stop working if there is any malfunction, then automatically deal with the failed cable tie and restart.
6. Temperature control system. It would improve the cable tie toughness when you use the machine and nylon ties under 15℃.
7. Be more suitable for motor stator bundle or items with small room for cable tie to go through.
8. It is an electronic and pneumatic machine.
Tech data
| Product name | Automatic cable tie tool | |
| Application | Motor coil bundle; Bundle items with small room for cable tie to go through. | |
| Loose cable tie | Cable ties size | W2.5 * L100mm |
| Cable ties quantity | 1,000pcs cable ties per bag | |
| Cable ties material | Polyamide 6.6 | |
| Cable tie tool | Tool size | L331 * W282 * H189mm |
| Bundle speed | 1.0S | |
| Bundle diameters | 9.0mm -13.0mm | |
| Gun weight | 6kg | |
| Gun power | DC24V | |
| Voltage | AC220V – AC240V, 50/60Hz; AC100V – AC110V, 50/60Hz | |
| Pneumatic pressure | 5kg/cm² | |
| Total power | 1,000W | |
Trading details
1. 100%TT payment before ship.
2.Lead time: 10 – 15working days normally.
3. Price: EXW
4. Sea port: Shenzhen
5. Machine would be packed in wooden cases.
